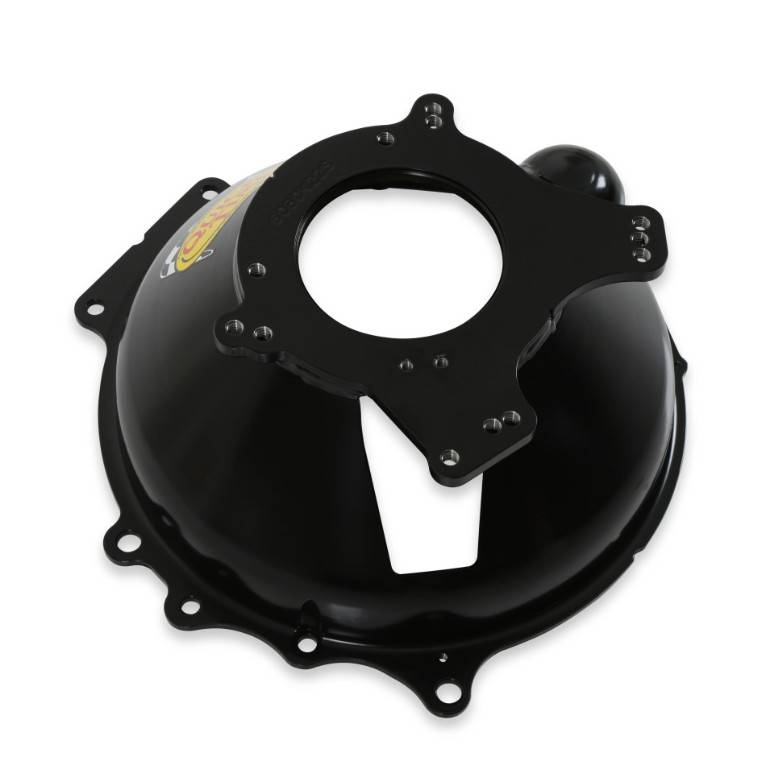

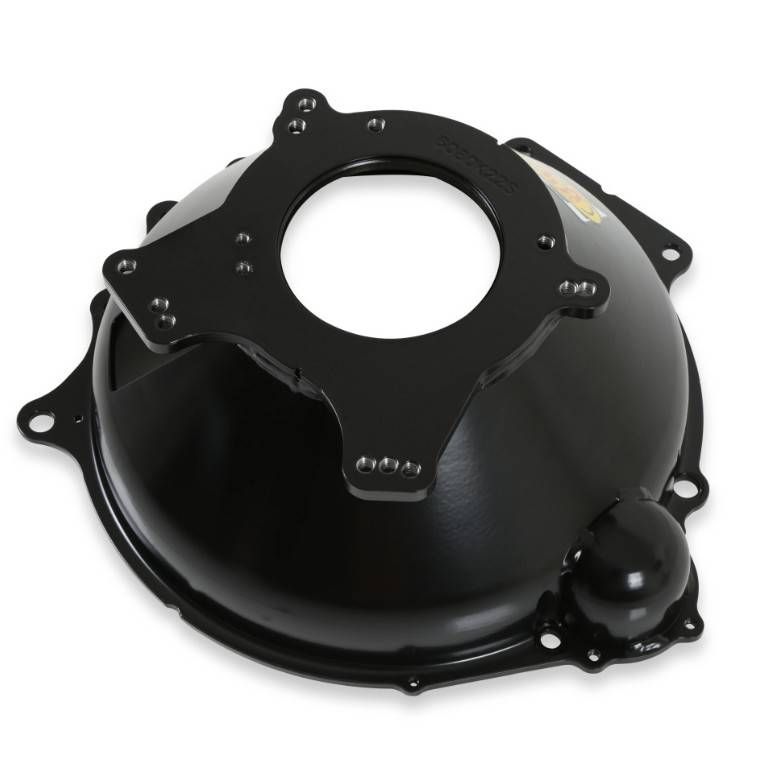

Quicktime Bellhousing - Ford Modular Engine to TKX, TKO, TR3550 or T-5 Transmission

Fits: 4.6/5.0/5.4/5.8/6.2 Ford Modular or 7.3L Godzilla Engines to TKX, TKO, TR3550, or T5 Transmissions

(0) Reviews: Write first review
RM-6080

Designed to Fit Ford Modular Engines with popular TKX, TKO, TR3550, or T5 Transmissions

Designed for street, strip, and circle track use, the QuickTime RM-6080 bellhousing delivers unmatched precision and durability. Manufactured from high-grade steel, the spun—not stamped or rolled—cone construction ensures exceptional dimensional stability and accuracy, ideal for high-performance applications.

This bellhousing is engineered to mate Ford Modular engines (4.6L, 5.0L, 5.4L, 5.8L, 6.2L) to Ford TKX, TKO, T5 Mustang, and TR3550 transmissions. It features a 6.925-inch depth, clears a 164-tooth flywheel and 11-inch clutch, and supports a transmission bore of 4.685" / 4.910", all while weighing just 20 lbs.

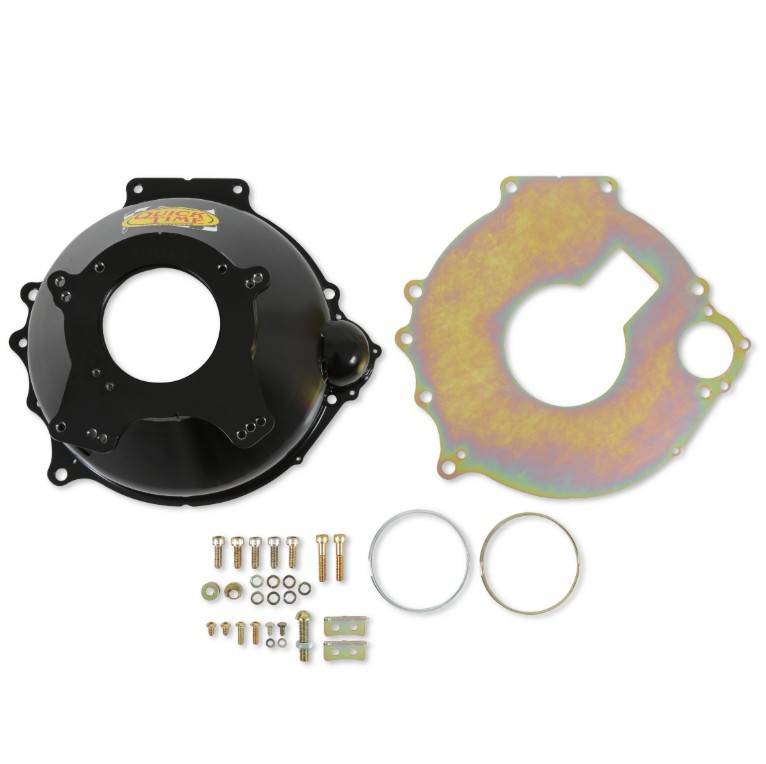

The RM-6080 includes a fork bracket, block plate, and Grade 8 hardware.

PLEASE NOTE: For SFI-approved versions, check out part numbers RM-6081 and RM-6082.

Sold as a Kit

Pricing: $1,099.95
Qty:
FREE SHIPPING on orders *$199 or more

Description

Quick Time Bellhousing Product Features:

  • Industry-Leading Accuracy – Manufactured using a proprietary process for unmatched precision and fitment.

  • Spun Steel Cone Design – Unlike rolled or stamped alternatives, the spun cone ensures maximum dimensional stability.

  • High-Strength Construction – Made from premium-grade steel that work-hardens to over 80,000 PSI, delivering more than twice the strength of standard bellhousings.

  • Made in the USA – Proudly 100% manufactured in the United States.

  • Patented Design – Features 16 patented elements covering key aspects of bellhousing design and manufacturing.

Special Notes

Quick Time Bellhousing Product Features:

  • Industry-Leading Accuracy – Manufactured using a proprietary process for unmatched precision and fitment.

  • Spun Steel Cone Design – Unlike rolled or stamped alternatives, the spun cone ensures maximum dimensional stability.

  • High-Strength Construction – Made from premium-grade steel that work-hardens to over 80,000 PSI, delivering more than twice the strength of standard bellhousings.

  • Made in the USA – Proudly 100% manufactured in the United States.

  • Patented Design – Features 16 patented elements covering key aspects of bellhousing design and manufacturing.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 34.0 lbs.
  • W19.0000” x H9.0000” x L18.0000”
