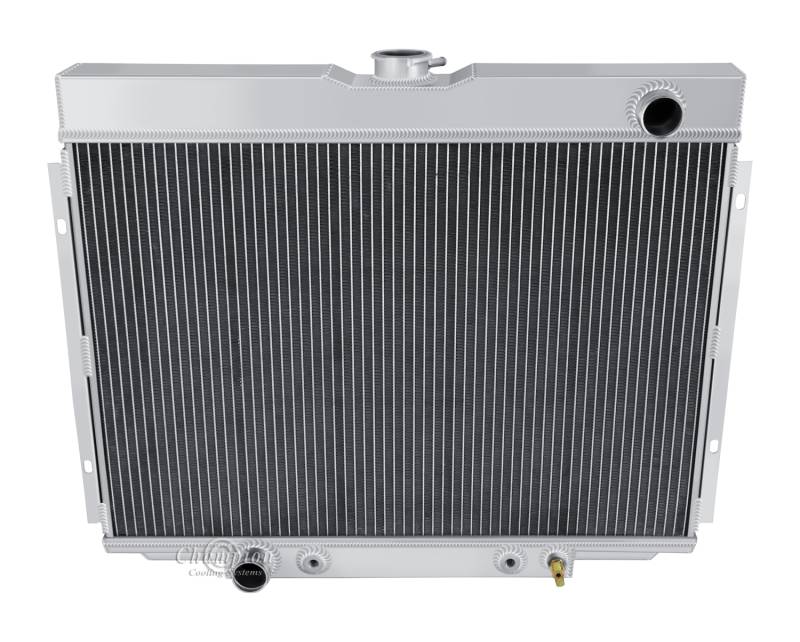

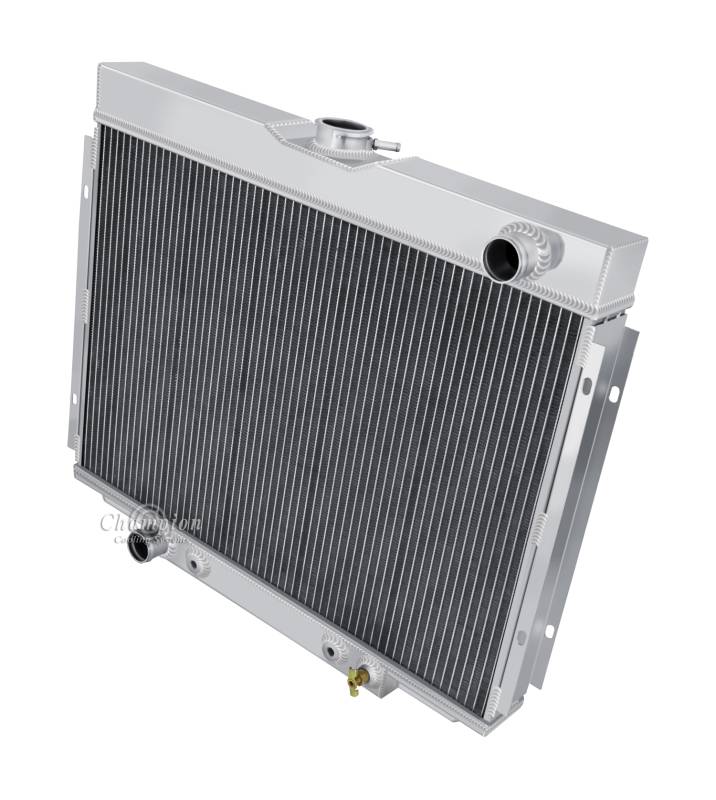

67-70 Mustang 24 Inch Aluminum Radiator and Fans for 5.0 Coyote Engine Swaps
24" Core Down-Flow Radiator for Classic Mustang with Coyote Engine Swaps
Upgrade the cooling system in your classic Mustang with this 3 Row aluminum radiator, specifically configured for 1967, 1968, 1969, and 1970 Ford Mustang Coyote engine swaps.
This high-performance Mustang radiator features a 24" wide-class core, down-flow radiator design, passenger-side inlet, and driver-side outlet, making it a purpose-built cooling solution for Coyote-powered classic Mustangs.
This radiator package combines a modern aluminum radiator construction with a configuration designed around the requirements of a Coyote engine conversion. It is an excellent foundation for street-driven restomods, performance Mustangs, and custom Coyote swap builds. Radiator cap included.
Sold as KIT
Special Notes
Built for 1967-1970 Mustang Coyote Swaps
Installing a modern Ford Coyote engine into a classic Mustang requires more than simply choosing a universal radiator. Hose routing, radiator dimensions, mounting, and cooling-system connections all need to work with the vehicle and engine combination.

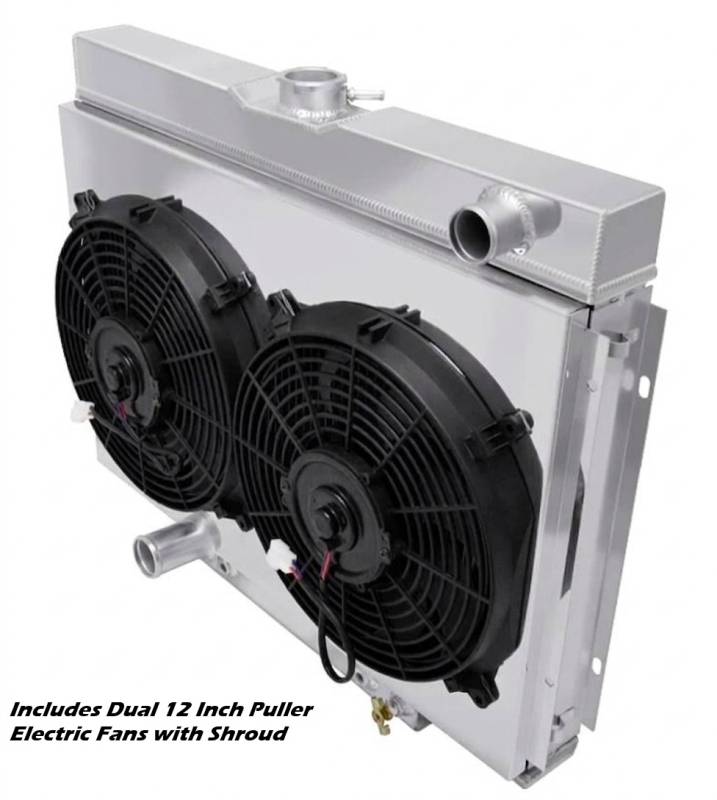

The 379-CY is specifically for 1967-1970 Ford Mustang 5.0 Coyote engine swaps and features a driver-side lower hose configuration and the correct diameter inlet and outlet for the Coyote hoses. This 24 Inch 3 Row Radiator Kit comes with Dual 12 Inch Diameter Electric Puller Fans with Fan Shroud for Mounting cleanly to the radiator and Dual Relays.
Whether you're building a 1967 Mustang restomod, a 1968 Mustang street car, a 1969 Mustang performance build, or a 1970 Mustang Coyote swap, the 379-CY provides a dedicated aluminum radiator option for your cooling system.
Mustang Aluminum Coyote Swap Radiator Features
- Designed for 1967-1970 Ford Mustang Coyote engine swaps
- Aluminum performance radiator
- Down-flow radiator design
- 24" class core width

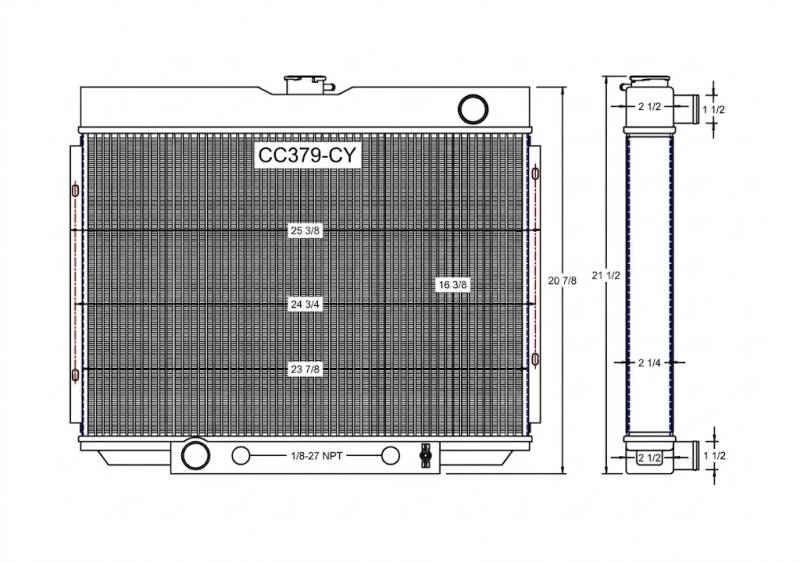

- 16 3/8" x 23 7/8" core dimensions
- 21 1/2" x 25 3/8" overall dimensions
- Passenger-side inlet (1.5 Inch Diameter for Coyote Hoses)
- Driver-side outlet (1.5 Inch Diameter for Coyote Hoses)
- 1 1/2" inlet and outlet hose fittings
- 1/8-27 NPT transmission cooler connections
- Flange Bracket-mount design
- Radiator cap included
- Dual 12" Puller Electric Fans and Shroud Package
Details
- CCS-379-CY
- CCS-379-CY
- Champion Cooling
- New
Shipping Information
- Item Requires Shipping
- 30.0 lbs.
- W10.0000” x H19.0000” x L24.0000”
- FREE SHIPPING on orders *$199 or more
- This item ships in its own box.
