67-70 Mustang Aluminum Radiator and Fan for 5.0 Coyote Engine Swaps, Cross Flow, Triple Pass

Key Product Details

Product: 1967-1970 Ford Mustang Coyote Swap Radiator, Fan & Shroud Package

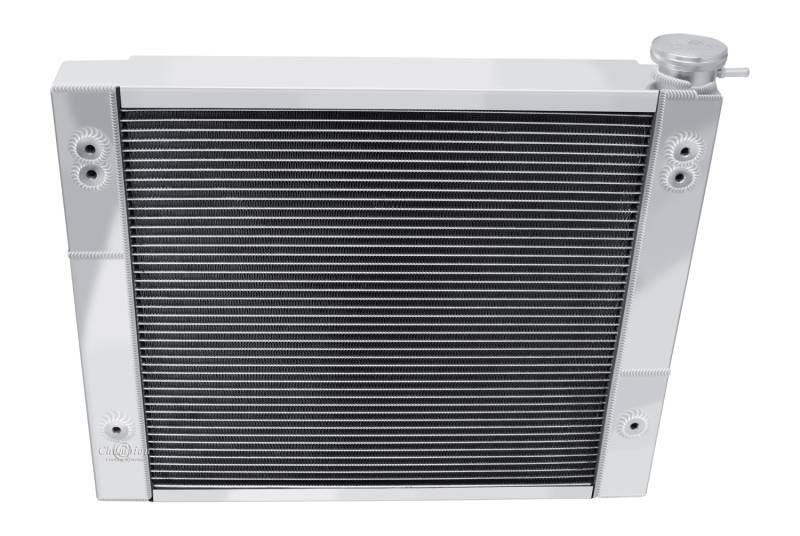

Radiator: Aluminum Radiator 2 Row (1 Inch Tubes)- CS6770TP
Application: 1967-1970 Ford Mustang Coyote Engine Swap
Configuration: 2-Row, Cross-Flow, Triple Pass
Overall Radiator Size: 19 3/4" x 24"
Core Size: 17 1/2" x 19 1/8"
Inlet: Passenger Side, -16 ORB (1.5 Inch Diameter)
Outlet: Driver Side, -16 ORB (1.5 Inch Diameter)
Mounting: 5/16-18 Mounting Bungs
Transmission Cooler: None
Radiator Cap: Billet Aluminum

Built for Coyote Engine Swaps

Coyote engine conversions bring modern Ford performance to classic Mustang chassis, but the cooling system needs to keep pace. The Aluminum radiator uses a triple-pass cross-flow radiator design intended for performance applications where effective heat management is critical.

This radiator features a 17 1/2" x 19 1/8" core and measures 19 3/4" x 24" overall, providing substantial cooling capacity in a package designed around the 1967-1970 Mustang Coyote swap application.

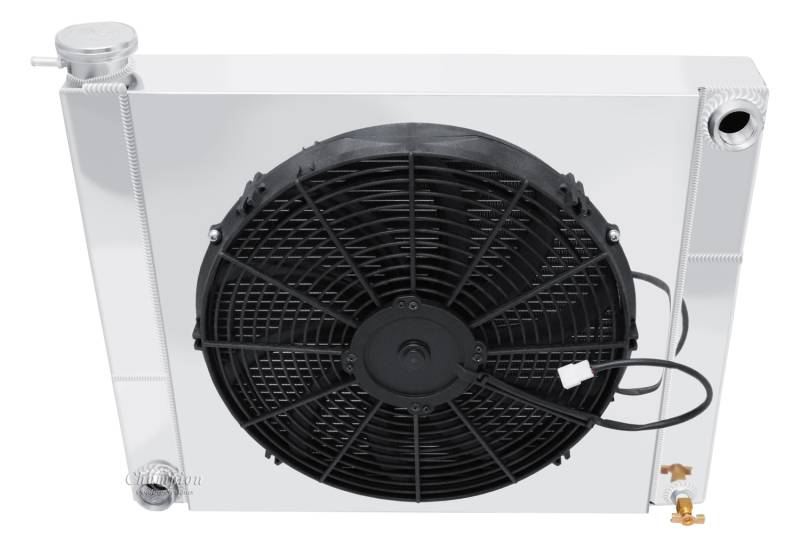

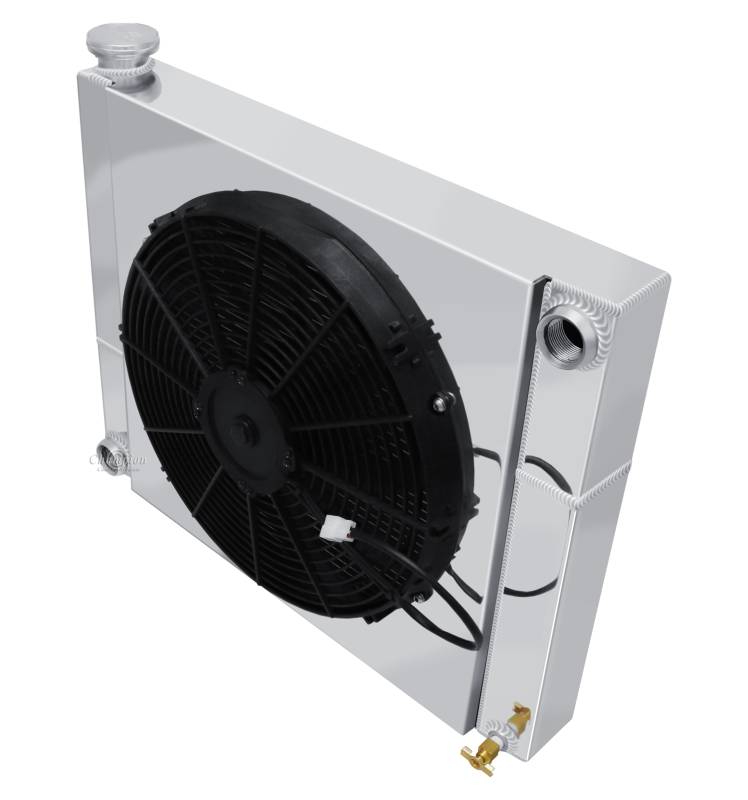

The complete package adds an puller electric fan and matching shroud for a super clean install and to help provide controlled airflow through the radiator, making it a practical choice for street-driven Coyote swaps, restomods, and performance Mustangs.

Complete Coyote Swap Cooling Package

Instead of purchasing individual cooling components, this package combines the major components needed for a modern electric-fan cooling setup:

• Triple Pass Radiator Design for Better Cooling Performance

• 2-row Aluminum Radiator Construction

• Cross-flow triple-pass radiator design

• Performance Electric cooling fan (on Engine Side)

• Aluminum Fan shroud

• Coyote swap-oriented upper/lower hose configuration

• Passenger-side radiator inlet Designed to fit Diameter of Coyote Hoses (1.5 Inch)

• Driver-side radiator outlet Designed to fit Diameter of Coyote Hoses (1.5 Inch)

• -16 ORB inlet and outlet fittings

• 5/16-18 mounting bungs for Straight-Forward Installation

• Designed for 1967-1970 Ford Mustang Coyote engine applications

Triple-Pass Cross-Flow Cooling

The heart of this package is the CS6770TP's triple-pass cross-flow radiator.

Coolant travels through the radiator core multiple times before exiting, increasing the coolant's exposure to the cooling surface. Combined with the cross-flow configuration, this design is well suited to performance cooling applications where efficient heat transfer is important.

The radiator uses a 2-row configuration with a 17 1/2" x 19 1/8" core and a 19 3/4" x 24" overall size.

Designed Around the Coyote Swap

Modern Coyote engines can produce substantially more power and heat than the original engines found in many classic Mustangs. A properly sized radiator and controlled electric airflow are therefore important considerations when converting a classic Mustang to Coyote power.

The CS6770TP is specifically cataloged for 1967-1970 Ford Mustang Coyote engine applications, making it a purpose-oriented option for builders rather than a generic universal radiator.
