65-66 Mustang Modular Motor Hydroboost Hydraulic Power Brake Boost Assembly

Designed Specifically for FORD 5.0L V8 COYOTE ENGINE SWAPS in Classic Mustangs

(0) Reviews: Write first review
HTB-5661L

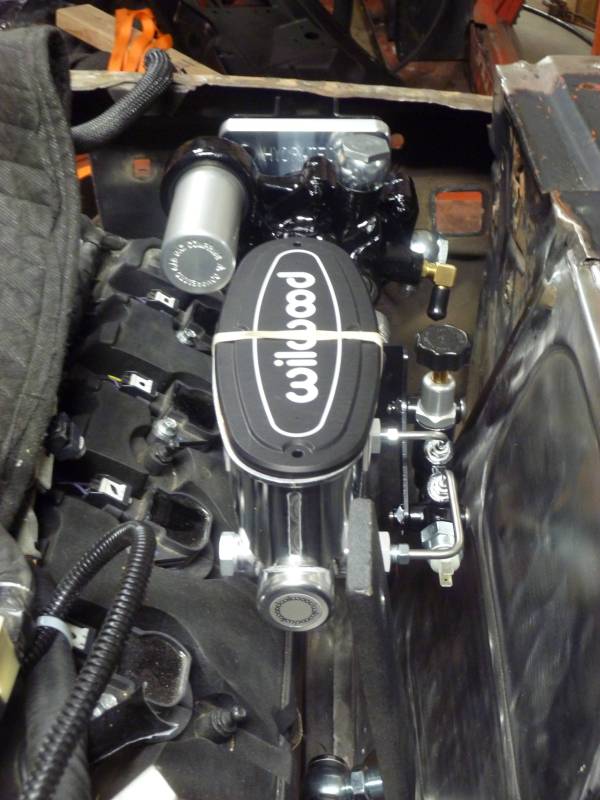

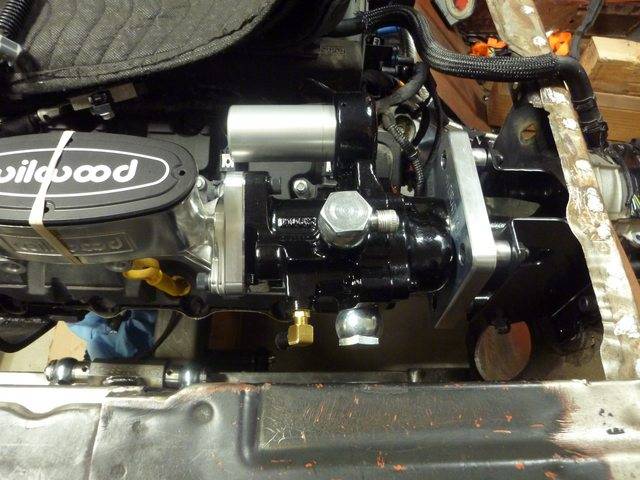

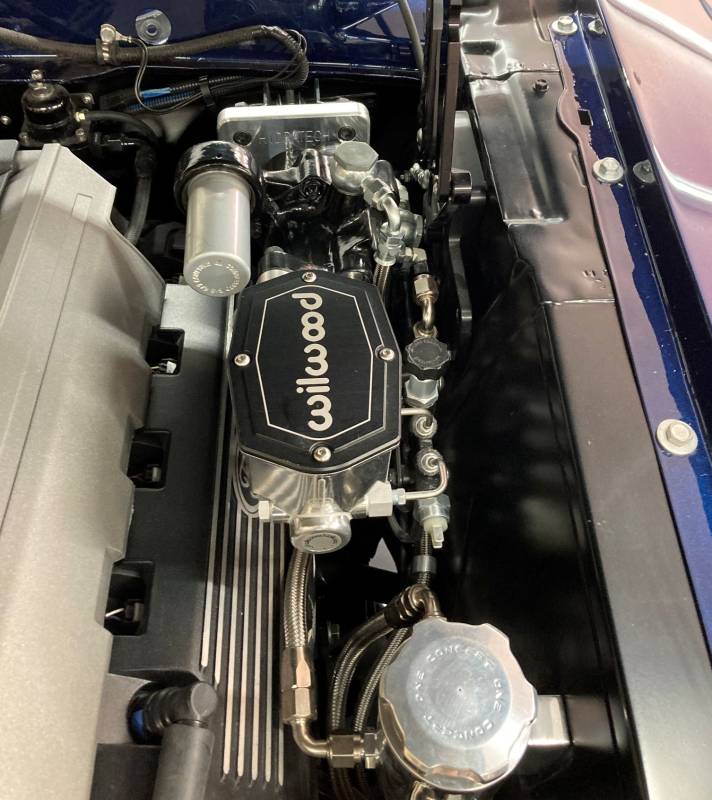

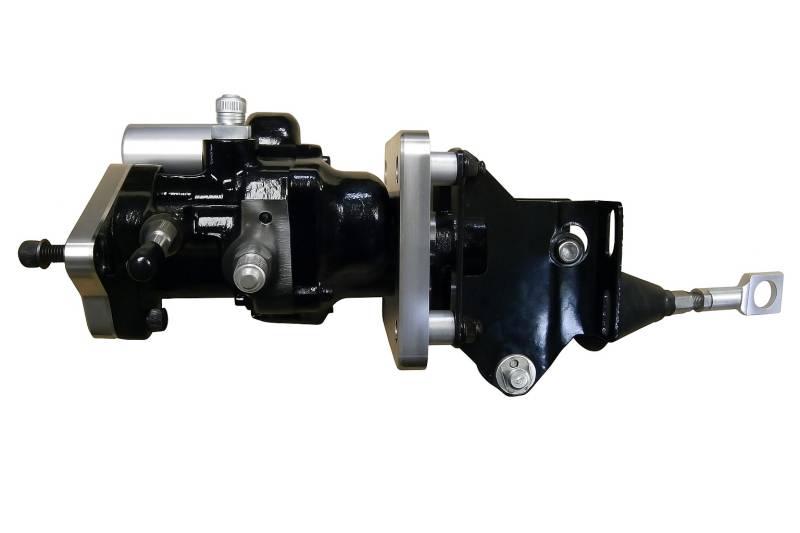

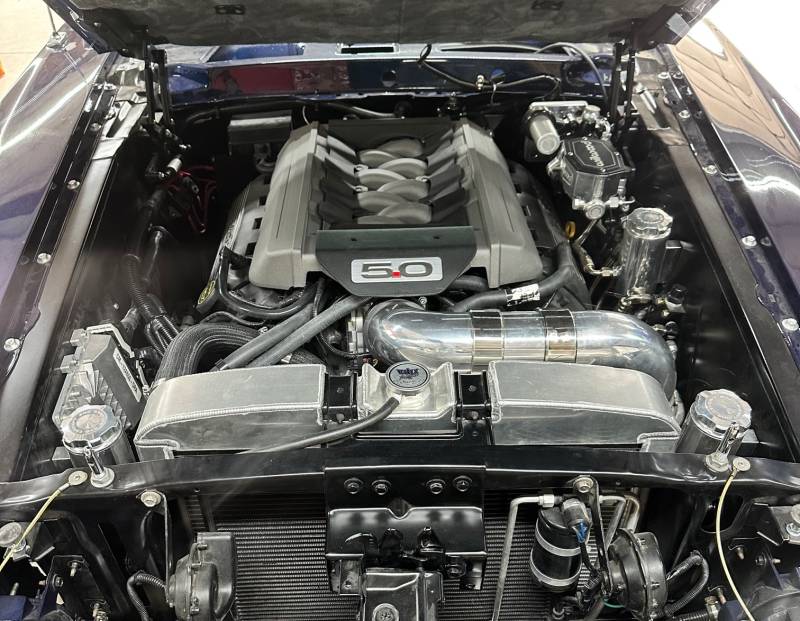

Hydro boost Power Brake Assist Assembly designed for 65-66 Mustangs with Modular Coyote 5.0 Engine Conversions

Upgrade your Classic 65-66 Mustang's braking power with our high-performance Hydraulic Brake Assist System. This hydraulic brake assist system is designed with a cantilever firewall bracket that is designed to bolt up to your classic Mustang firewall but provides the height to clear the wide Coyote Modular 5.0 Engine conversions where a Factory vacuum booster will not clear!

Every system is built entirely from brand-new parts—no remanufactured or refurbished components like some others found on the market. This Hydratech system uses only the latest production Bosch units—proven, reliable, and ready for high-performance applications. Each unit is thoroughly tested to ensure consistent and precise brake assist operation before it reaches you. No fabrication needed - Installs using common hand tools on your classic Mustang's stock firewall!

Sold as a Kit

Availability: This is a special-order item. The current lead time to ship from the date of order is 12 weeks.
Pricing: $1,189.95

Customize Your Item

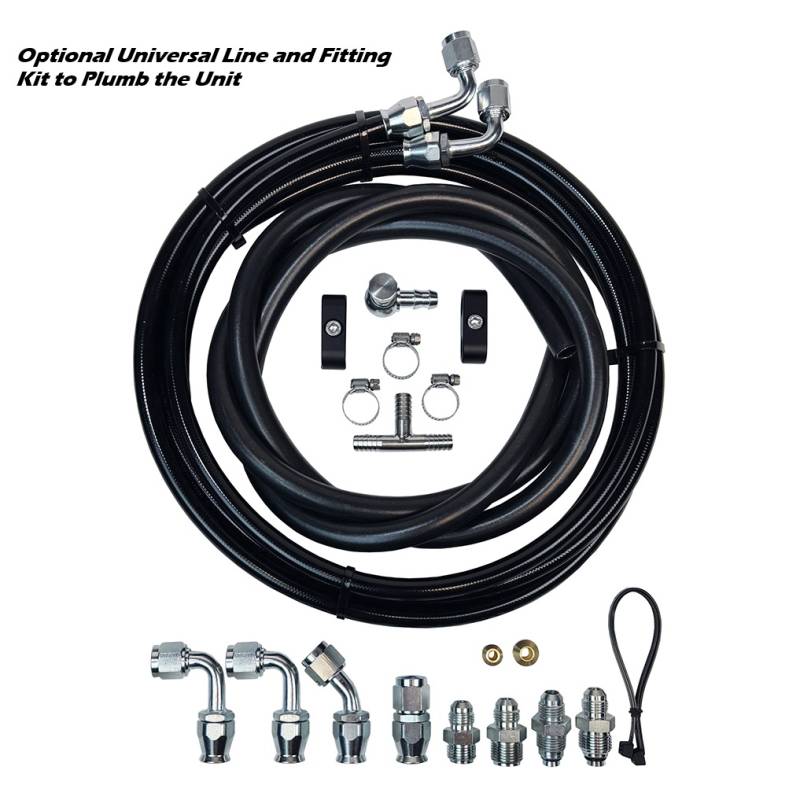

- Add Hydraulic Line & Fitting Kit -
 * required
- Add Wilwood Master Cylinder -
 * required
- Add Combination Valve Kit -
 * required
Qty:
FREE SHIPPING on orders *$199 or more

Special Notes

Key Modular 5.0 Coyote Conversion Hydro boost Product Features:

  • 100% all-new, high-end components – no remanufactured parts!
  • CNC-machined T6061 billet aluminum mounting plates (Hydratech)

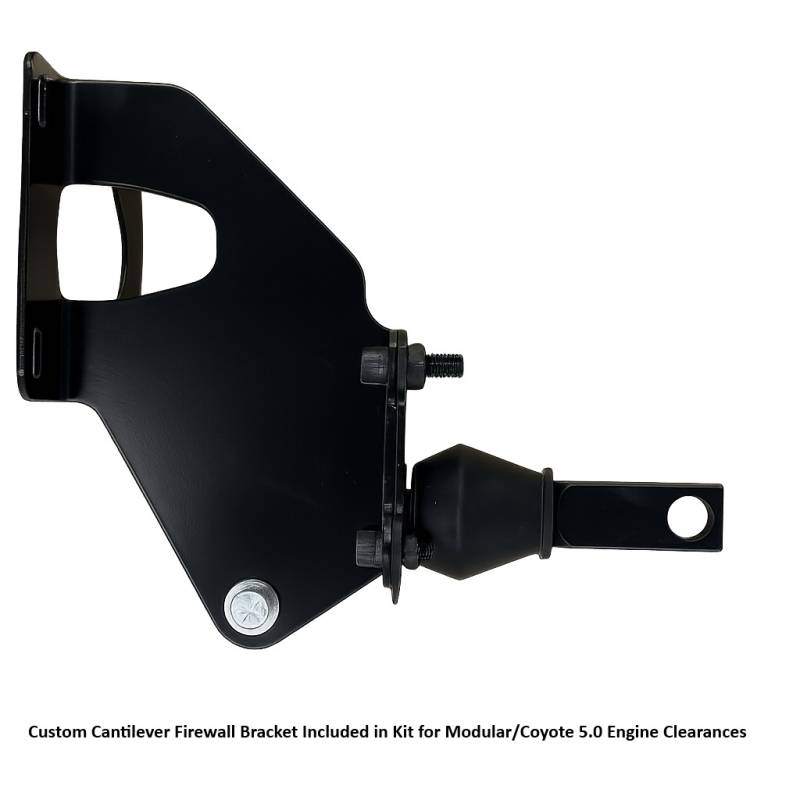

  • Cantilever Bracket designed for direct bolt-on installation to Mustang firewall - just a few holes need to be drilled
  • Engineered Cantilever Bracket keeps geometry correct, but allows clearances with Modular/Coyote Engine Installs
  • Genuine NEW (Not Rebuilt) Bosch factory production brake assist unit
  • Industrial black powder-coated brake unit castings
  • Factory dyno-tested for consistent and accurate operation
  • True bolt-in design – installs easily with common hand tools
  • AN-6 high-pressure adapters pre-installed in ports
  • Low-profile 90° return line nipple for tight clearances
  • Step-by-step installation instructions included
  • Phone and email support from real tech experts
  • 1-year limited warranty on materials and workmanship from the manufacturer

OPTIONAL ADDITIONAL ITEMS TO COMPLETE YOUR KIT

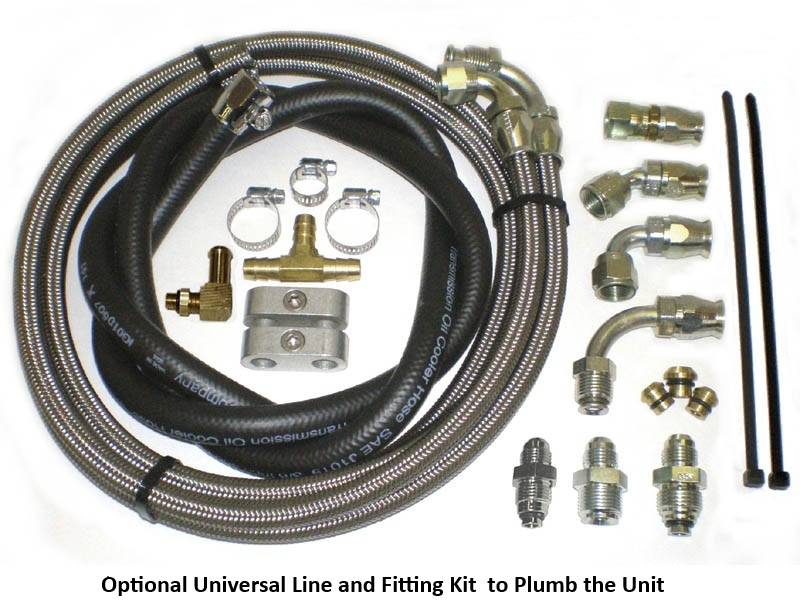

  • Genuine Aeroquip braided stainless TFE hose set
  • Reusable/rebuildable Aeroquip hose ends – not crimped
  • Complete plumbing kit with all necessary fittings and small parts

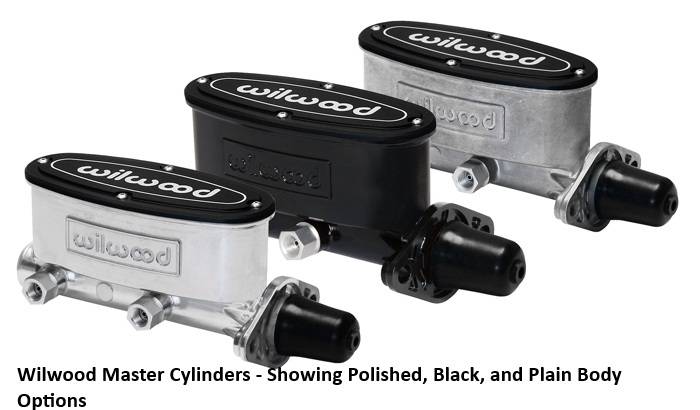

  • Wilwood Master Cylinder with Choice of Body Finish

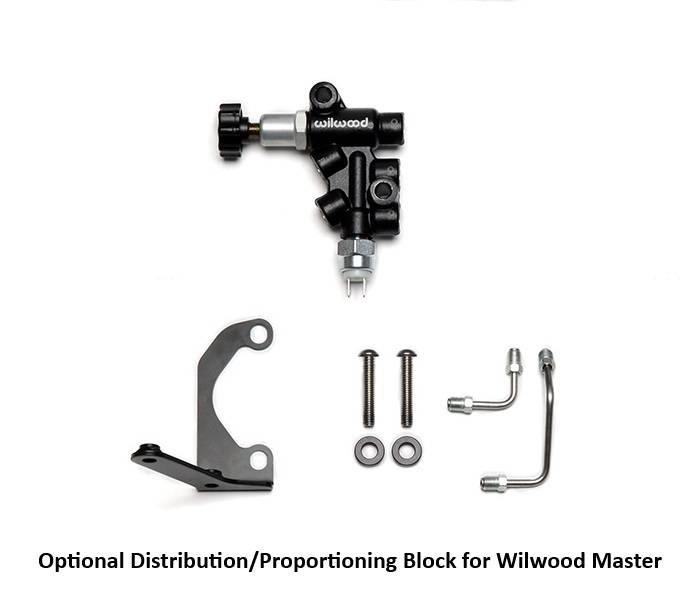

  • All-in-One Distribution/Propotioning Block for Clean Plumbing and Easier Adjustment

**IMPORTANT INSTALLATION NOTES (PLEASE READ BEFORE PURCHASE):

  • If using Stock Hood Hinges, you must remove the stock springs and use a Hood Prop Rod for Proper Clearance with the Assembly on the Driver's Side
  • If wanting to run aftermarket Billet Hood Hinges instead, we recommend Eddie Motorsport Hinges as we know they clear this unit (See links below)
  • Must use a Power Steering pump that can provide the proper pressure/flow for a Hydro boost System. If unsure, please contact us before making a purchase.
  • We recommend the Wilwood master cylinder we offer. If you already have a master cylinder, please contact us before purchase to make sure it is compatible.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 28.0 lbs.
  • W14.0000” x H14.0000” x L14.0000”
  • FREE SHIPPING on orders *$199 or more
