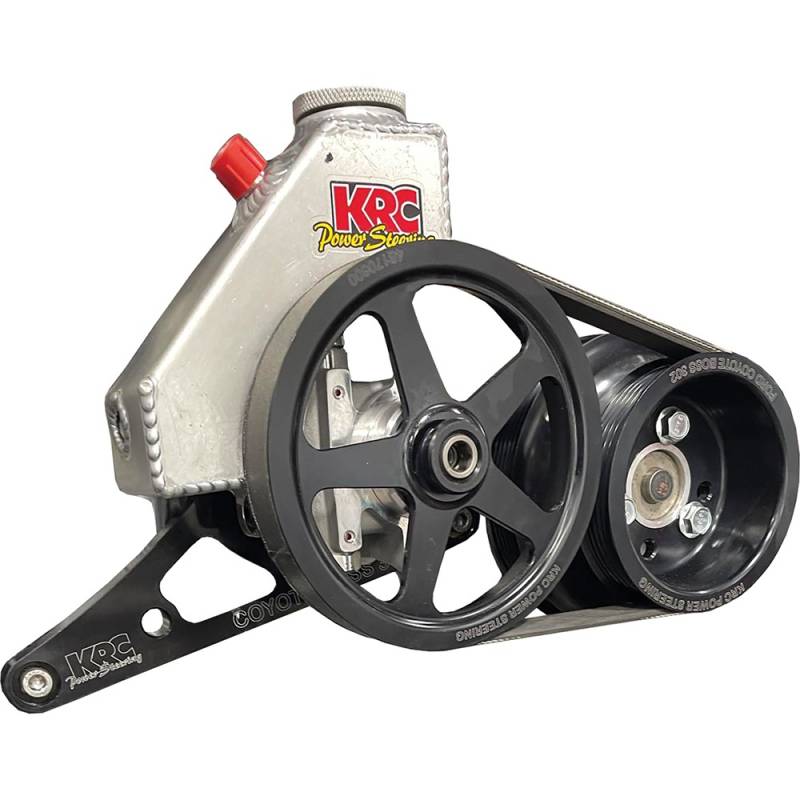

Mustang Coyote 5.0 Engine Swap Power Steering Pump with Pulleys

KRC-66302125

Simplify your Coyote 5.0 Engine Swap with this Power Steering Pump Kit, which allows you to keep your stock Accessories

This Power steering pump conversion kit is an excellent way to add Hydraulic power steering to your Coyote Swap project! This power steering pump kit will allow you to use the stock Coyote Alternator and the Stock Coyote A/C Compressor (if you want A/C in your Mustang). This power Steering pump tucks very tight to the front of the Coyote motor and keeps the fluid reservoir on-board for a clean addition to your Coyote Motor that looks like it came that way from the Factory. The installation is very straightforward and includes all the mounting hardware, pulleys, belt, and brackets to install this power steering pump to the Coyote block. If you plan on installing a Hydraulic Power Steering rack in your Classic Ford, Early or Late Model Mustang, and are swapping to a Mustang 5.0 Coyote Motor, this power steering pump kit is a must! Get your Coyote Swap Mustang closer to cruising the Streets with this Power Steering kit from Stang-Aholics.

Important Install Note: NOT Designed to work with the Coyote Engine out of an F-150 Truck

Sold as KIT

Was: $1,122.93
Sale: $990.22
Save: 12%
Save: $132.71

Customize Your Item

- Belt if Using A/C Compressor -
 * required
Qty:
FREE SHIPPING on orders *$199 or more

Special Notes

The 2011 - 2019 Coyote 5.0 Engines used Electric Power Steering Rack and Pinions. However, when you are swapping a Coyote Motor into a Classic or Late Model (Pre-2010) Mustang, they were not equipped to use an Electric rack and pinion kit. So, to solve this issue when swapping the Coyote motor into an Earlier Mustang or Ford, this Pump kit allows a Hydraulic Power steering pump to easily mount to the front of the Coyote Engine! This power Steering Pump Kit will also allow you to use the factory Coyote Alternator, Water Pump, and A/C Compressor if you want Air Conditioning in your ride! This feature will save your time, money and extra headaches when performing your Coyote Engine Swap into an earlier Model Mustang!

This power steering pump kit is compatible with both 3 and 4 bolt water pumps. All necessary hardware and brackets are included in the kit. Again, a big bonus is you can retain the factory AC compressor and pulley along with the Factory alternator and pulley for a clean OE type install.

QUALITY USA MADE COMPONENTS:
The power steering pump in this kit is of excellent quality and durability! KRC manufacturers and assembles this quality pump in the USA! This pump features aluminum construction providing a durable and lightweight pump assembly. The pump also uses Viton seals which are some of the highest grade seals on the market and will ensure the power steering fluid will not leak. High-quality SKF bearings are also used in the pullies for smooth operation with as little friction as possible. The water pump pulley is also a high quality 1 piece billet aluminum pulley and is coated in a beautiful black finish, that will resist any corrosion or wear!

What's Included In the Box:

(1) Hydraulic Power Steering Pump With Pulley
(1) Mounting Bracket
(1) Water Pump Pulley
(1) Power Steering Pump Belt
(1) Installation Hardware


IMPORTANT Installation Notes:

-Power Steering Pump uses -6AN Fittings for Pressure and Return side back to reservoir, Custom AN In/Out fittings required for power steering rack
-Custom AN lines required for installation
-If using adapters for AN fittings, you must ensure they are installed properly or it will blow the seals out. This will void your warranty if installed incorrectly. Refer to the disclaimer inside your steering rack box for proper installation.
-NOT Designed to work with a Coyote 5.0 Engine out of an F150 Truck
-NOT Designed to work with the Heidts PRO-G Front Suspension, the Alternator will hit the Classic Mustang frame rail on the driver's side. If running a DSE front Clip in a Classic Mustang, please call us!

Details

Shipping Information

  • Item Requires Shipping
  • 10.0 lbs.
  • W12.0000” x H9.0000” x L14.0000”
  • FREE SHIPPING on orders *$199 or more
  • This item ships in its own box.
