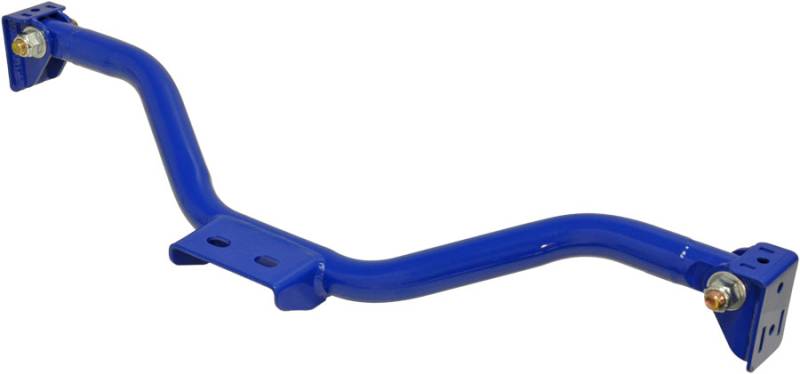

Weld-In Heavy Duty Transmission Crossmember for 65-70 Mustang
Weld-in Transmission Crossmember kit for Various Manual and Automatic Transmission Swaps in 65-70 Mustang
This is a Weld-in transmission cross member specifically for 65-70 Ford Mustang applications. Will allow most Manual Transmission Swaps (Tremec TKO 5 Speeds and 6 Speed Transmissions) along with Automatic Transmission swaps (AOD and AODE 4R70W). The main cross member tube is 1-1/4 inch x 4 inch drop offset which can allow fore/aft and drop-height variations during installation. This adjustment is important when fitting in aftermarket engine and transmission swap into your classic Mustang. This custom-fit crossmember is the perfect solution to these various transmission/engine swap configurations that will need a cross member that can adjust for that perfect engine angle and transmission placement in your classic 65-70 Mustang. The included insulator platform will work with all common two bolt transmission insulators.
Sold as KIT
Special Notes

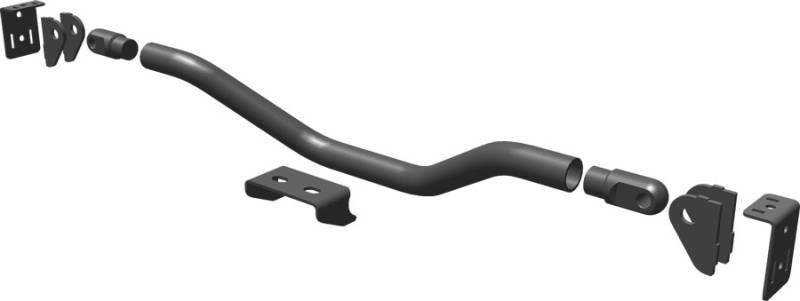

Whether altering drivetrain position or swapping in a non-factory transmission, this weld-in transmission crossmember kit from Stang-Aholics is the correct cross member for the job. Sized to directly fit in the ‘64-70 Mustangs and ‘62-67 Novas frame rails, this transmission crossmember has a maximum width of 29 inches and ships as an unassembled weld-together kit, which gives the ultimate flexibility in positioning your Mustang's drivetrain. By rotating the 1-1/4” diameter bent tube prior to installing the billet tube adapters your drivetrain angle is adjustable with a maximum drop height of four inches!. Additionally, the weld-on under floor frame rail brackets can be positioned as needed along the length of the car's factory rail to easily accommodate transmissions of various lengths.
Weld-In Cross Member Features and Benefits:
- Up to 4” crossmember drop height with center drop
- Maximum width of 29”
- Sturdy heavy duty 1-1/4 inch diameter crossmember tube
- Solid billet-steel tube adapters
- Gusseted frame rail brackets
- Suitable for most commonly used manual or automatic transmissions (Tremec Manual 5 Speed/6 Speed and - Automatic AOD, AODE, 4R70W Transmissions
- Standard 2 Bolt Insulator Platform is Compatible with Common 2 Bolt Insulators
- Made in the USA
Video
Details
- SA-TC-6573
- SA-TC-6573
- Stang-Aholics
- New
Shipping Information
- Item Requires Shipping
- 10.0 lbs.
- W5.0000” x H5.0000” x L32.0000”
- FREE SHIPPING on orders *$199 or more
- This item ships in its own box.
