65-66 Mustang Hydroboost Hydraulic Power Brake Boost Assembly

Designed for Push Rod Engines - Will Not Clear with Coyote/Modular Engines

(0) Reviews: Write first review
HTB-3061L

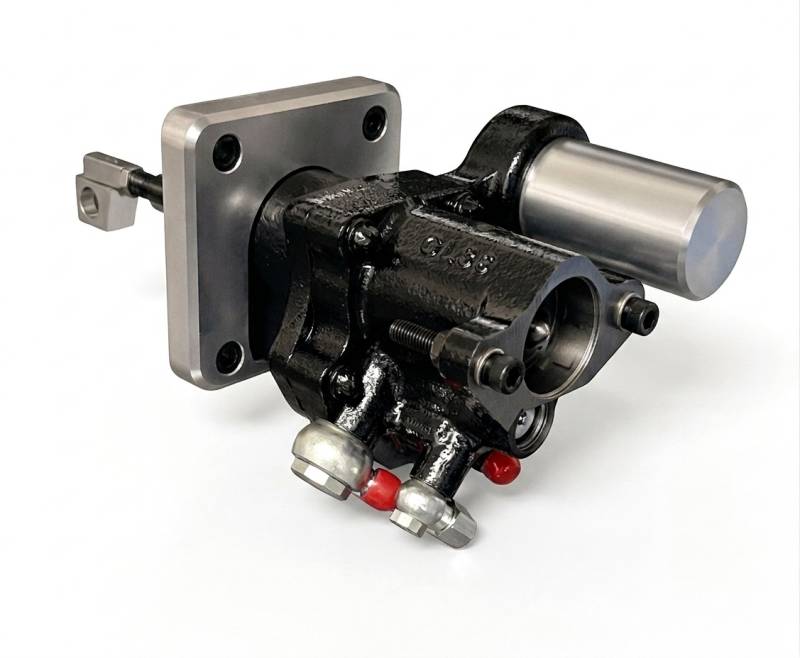

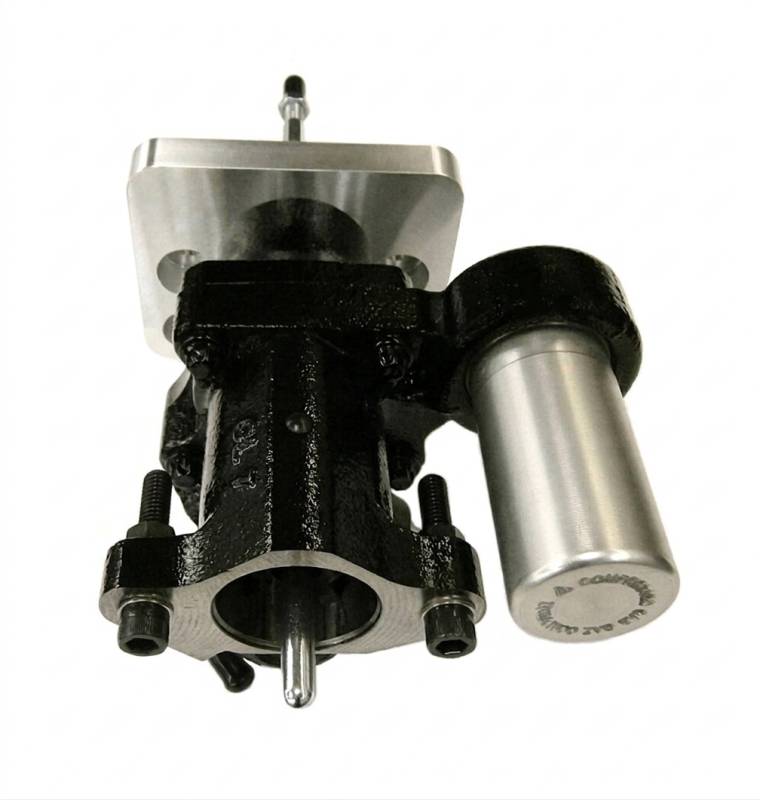

Hydro boost Power Brake Assist Assembly designed for 65-66 Mustangs with Push Rod Engines (Not Modular Engines)

Upgrade your Classic 65-66 Mustang's braking power with our high-performance Hydraulic Brake Assist System. This hydraulic brake assist system is designed to bolt up to your classic Mustang firewall and work in your engine compartment where a factory booster set-up creates clearance issues or where a high performance engine does not produce enough vacuum for a standard vacuum assist booster!

Every system is built entirely from brand-new parts—no remanufactured or refurbished components like some others found on the market. This Hydratech system uses only the latest production Bosch units—proven, reliable, and ready for high-performance applications. Each unit is thoroughly tested to ensure consistent and precise brake assist operation before it reaches you. No fabrication needed - Installs using common hand tools on your classic Mustang's stock firewall!

Sold as a Kit

Availability: This is a special-order item. The current estimated lead time to ship from the date of order is 1-2 weeks.
Pricing: $989.00

Customize Your Item

- Add Hydraulic Line & Fitting Kit -
 * required
- Add Wilwood Master Cylinder -
 * required
- Add Combination Valve Kit -
 * required
- What Type Of Transmission? -
 * required
- What Brake Pedal Do you Have? -
 * required
Qty:
FREE SHIPPING on orders *$199 or more

Special Notes

Key Hydro Boost Product Features:

  • 100% all-new, high-end components – no remanufactured parts!
  • CNC-machined T6061 billet aluminum mounting plates (Hydratech)
  • Designed for direct bolt-on installation to Mustang firewall - just a few holes need to be drilled
  • Genuine NEW (Not Rebuilt) Bosch factory production brake assist unit
  • Industrial black powder-coated brake unit castings
  • Factory dyno-tested for consistent and accurate operation
  • True bolt-in design – installs easily with common hand tools
  • AN-6 high-pressure adapters pre-installed in ports
  • Low-profile 90° return line nipple for tight clearances
  • Step-by-step installation instructions included
  • Phone and email support from real tech experts
  • 1-year limited warranty on materials and workmanship from the manufacturer

OPTIONAL ADDITIONAL ITEMS TO COMPLETE YOUR KIT

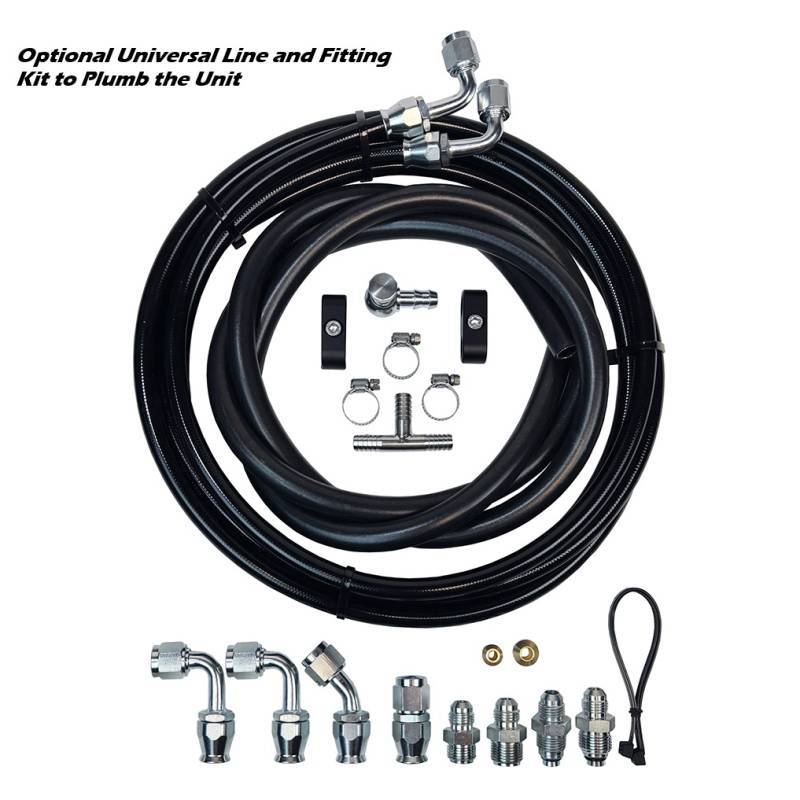

  • Automotive Grade Black braided TFE hose set
  • Reusable/rebuildable hose ends – not crimped
  • Complete plumbing kit with all necessary fittings and small parts

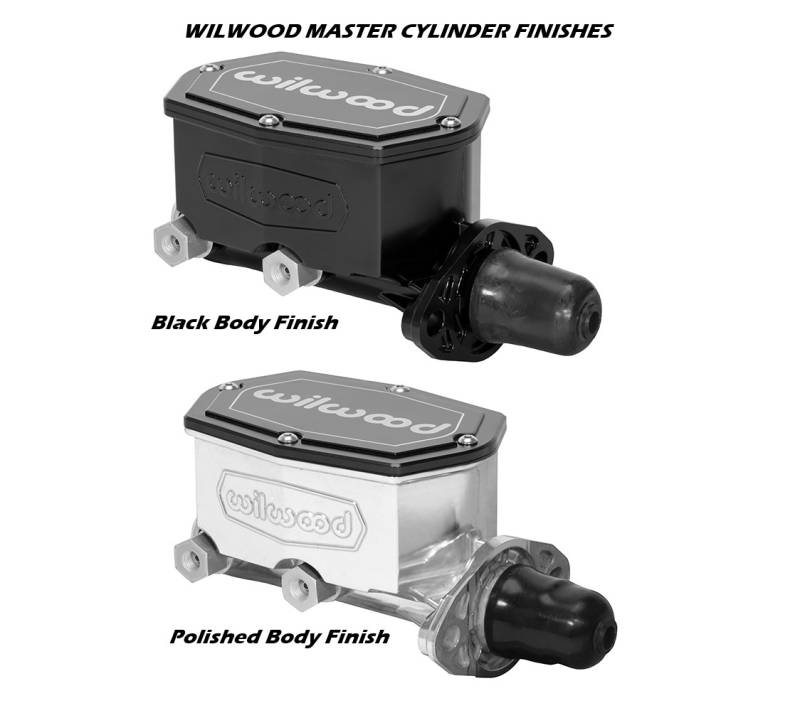

  • Wilwood Master Cylinder with Choice of Body Finish

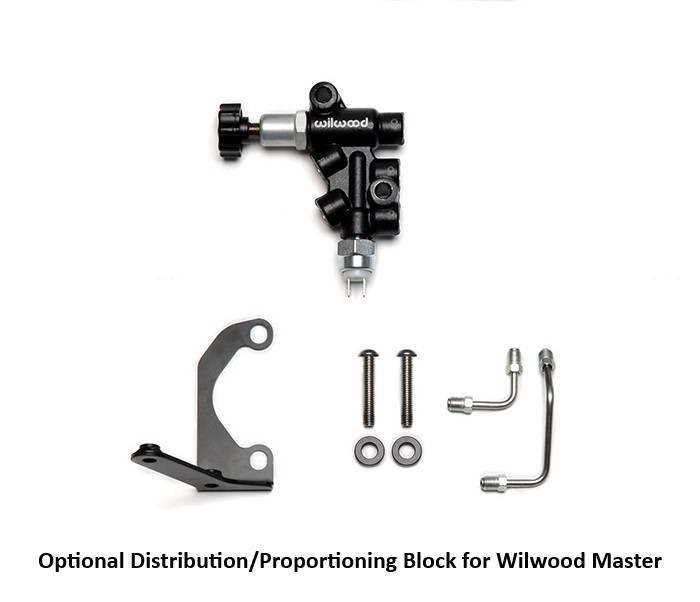

  • All-in-One Distribution/Propotioning Block for Clean Plumbing and Easier Adjustment

**IMPORTANT INSTALLATION NOTES (PLEASE READ BEFORE PURCHASE):

  • If using Stock Hood Hinges, you must remove the stock springs and use a Hood Prop Rod for Proper Clearance with the Assembly on the Driver's Side
  • If wanting to run aftermarket Billet Hood Hinges instead, we recommend Eddie Motorsport Hinges as we know they clear this unit (See links below)
  • Must use a Power Steering pump that can provide the proper pressure/flow for a Hydro boost System. If unsure, please contact us before making a purchase.

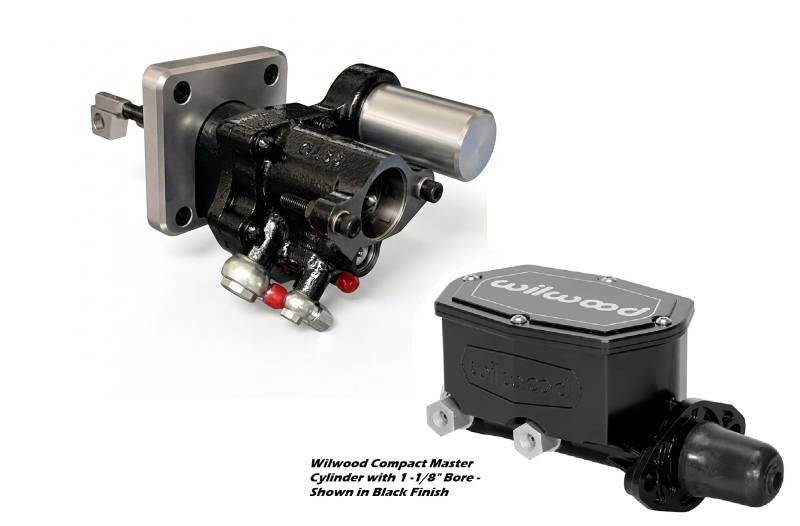

  • We recommend the Wilwood master cylinder with a 1-1/8 Inch bore we offer on this product page. If you already have a master cylinder, or are planning to use something else, please contact us before purchase to make sure it is compatible.
