67-69 Mustang Wilwood 13 Inch Front and Rear Brake Kit, 6 Piston Superlite Calipers

WEB-679-13-KIT

Wilwood Front and Rear Disc Brake Upgrade kit for 67-69 Mustang, 12.88 Drilled/Slotted Rotors with Superlite 6 Piston Calipers in Front 4 Piston in Rear

This Big Front and Rear disc Brake kit provides the added advantage of larger diameter brake rotors for traditional non-ABS spindles on 67 68 and 69 Classic Mustangs! These Wilwood Disc Brakes feature Forged Narrow Superlite 6 Piston Calipers in the Front and 4 Piston Calipers in the rear. 12.88” diameter Cross Drilled and Slotted rotors, and high performance Wilwood brake pads that all help to generate big brake stopping power to compliment wheel, tire, and suspension upgrades on all types of classic Mustangs. The Rear Disc Brake Kit features a neatly hidden internal shoe Parking brake system which provides a clean installation with superior static holding power for parking. Kit Also includes Braided Flex front brake lines and fittings and Rear parking brake cables and all fittings to attach to the assembly.

Sold as KIT

Pricing: $4,339.00

Customize Your Item

- Choose Brake Caliper Color -
 * required
- Choose Rear Axle Type -
 * required
Qty:
FREE SHIPPING on orders *$199 or more

Special Notes

Wilwood Front/Rear Kit Includes:

  • Front Forged Narrow Superlite 6 Piston Calipers (Red or Black) PLEASE NOTE: Front Brakes will work with original V8 Disc or Drum Spindles Only
  • Front 12.88″ Rotors, 1.10″ thick, Drilled and Slotted
  • Front -3 Stainless Steel Braided Lines with fittings – 18″
  • Rear Forged Narrow Superlite 4 Piston Calipers (Red or Black)
  • Rear 12.88″ Rotors, 1.10″ thick, Drilled and Slotted with parking brake assembly
  • Parking Brake Cables with Brackets and Hardware

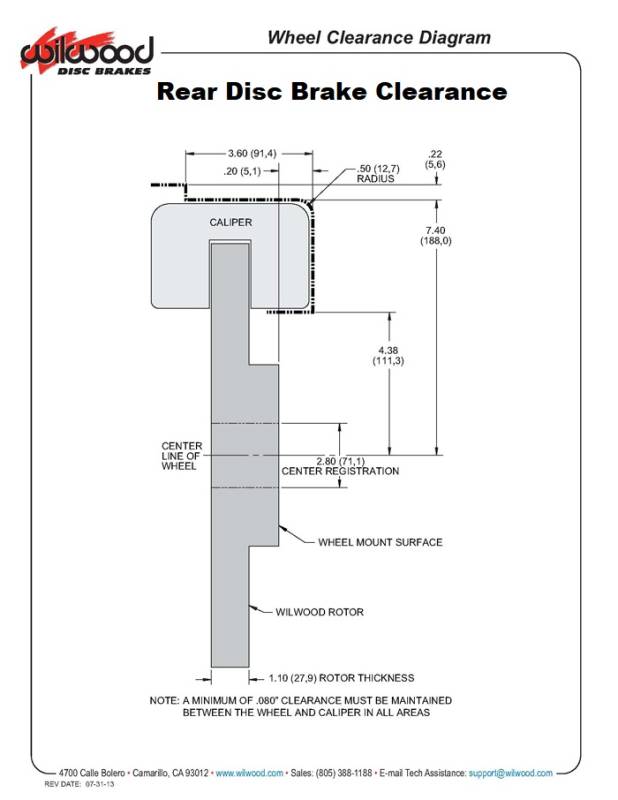

Wheel Clearance Notes: Will Clear MOST 17 Inch and Larger Wheels, please use the Wheel Clearance Diagrams shown in the additional product images on this page to confirm your wheels will clear these brake assemblies.



The REAR Brake Kit is offered for 3 different Rear Axle Flanges, PLEASE SEE THE VIDEO TAB ABOVE AND THE DOCUMENTS TAB FOR MEASUREMENT INSTRUCTIONS

  • 9″ Ford – Big Ford, New Style / Torino with 2.5″ Offset
  • 8″ & 9″  – Big Ford – Old Style with 2.36″ Offset
  • 8″ & 9″  – Small Ford with 2.5″ Offset
  • Other Variations Available Upon Request



INSTALL NOTE: When converting from drum brakes to to disc brakes a new Master Cylinder is required.  The Wilwood Tandem Aluminum Master Cylinder is great looking all-in-one solution.  They are available in 3 finishes; Bare, Black E-Coat and Media Burnished.  Bore size selection is important to create the desired pedal feel, we have found the information below to be a good rule of thumb.

  • 11″-12″ rotors with Manual Brakes – 15/16″ Bore
  • 11″-12″ rotors with Power Brakes – 1″ Bore
  • 13-14″ rotors with Manual Brakes – 7/8″ Bore
  • 13-14″ rotors with Power Brakes – 1″ Bore

Video

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 115.0 lbs.
  • W18.0000” x H18.0000” x L18.0000”
  • FREE SHIPPING on orders *$199 or more
  • This item ships in its own box.
