2020 Mustang GT500 JLT BIG Air Intake Kit

T14-CAI-GT500-20

JLT 2020 Ford Mustang GT500 Big Air Intake Kit with Red, Blue or White Filter

Computer designed and HUGE in size! JLT was able to design this tube to use all of the available space, the tube is 6" at the filter end and smoothly tapering down to 4.5" at the Throttle body side. Keeping the intake tube a half-inch bigger than the stock throttle body in anticipation of aftermarket offerings. NO TUNING REQUIRED!

Sold as a KIT

Pricing: $399.00

Customize Your Item

- Choose Filter Color -
 * required
- Add a Pre-Filter -
 * required
- Add a Replacement Filter -
 * required
- Add Cleaning & Oil Kit -
 * required
Qty:
FREE SHIPPING on orders *$199 or more

Special Notes

We currently expect this intake system to be available Mid-May 2020.

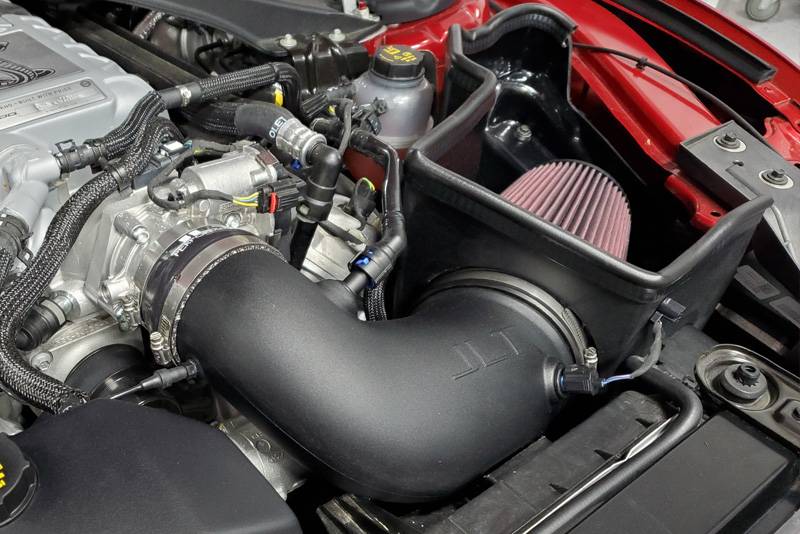

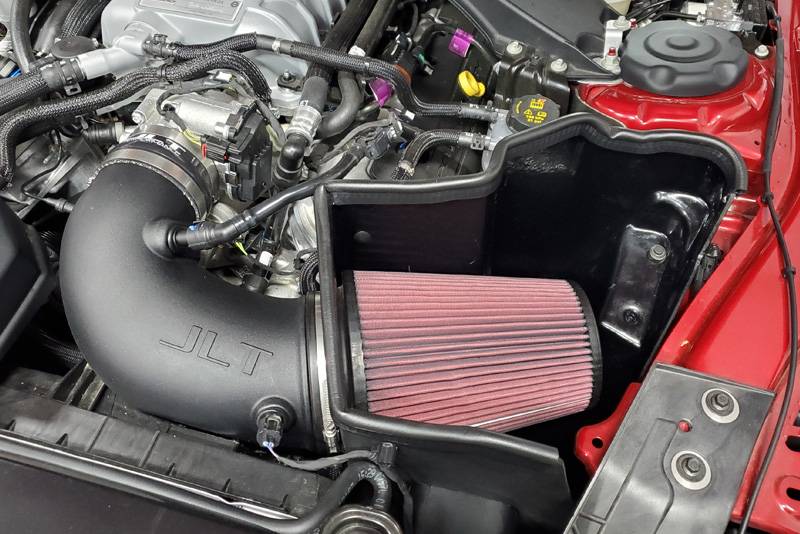

INTAKE TUBE
Computer designed and HUGE! We were able to design this tube to use all of the available space, the tube is 6" at the filter end and smoothly tapering down to 4.5" at the Throttle body side. Keeping the intake tube a half inch bigger than the stock throttle body in anticipation of aftermarket offerings.

HEAT SHIELD
The rotational molded plastic heat shield blocks engine heat at idle and low speed. The intake tube passes through the heat shield to have a complete seal with the hood acting as the lid to the air box. Our shield incorporates the fresh air inlet from the grill for the factory style ram air effect.

TUNING
No tuning is required with this intake system

EASY INSTALL
The design, detailed instructions and online video instructions helps make this an easy install (see Instructions & Videos tabs to download / view).

POWER GAINS
25-30 RWHP on a stock GT500
30+ on a modded GT500

KIT INCLUDES:
•JLT Black Textured Intake Tube
•Silicone Coupler
•6x9 S&B Powerstack Air Filter
•Heat Shield & Fresh Air duct
•HD Clamps & all needed hardware

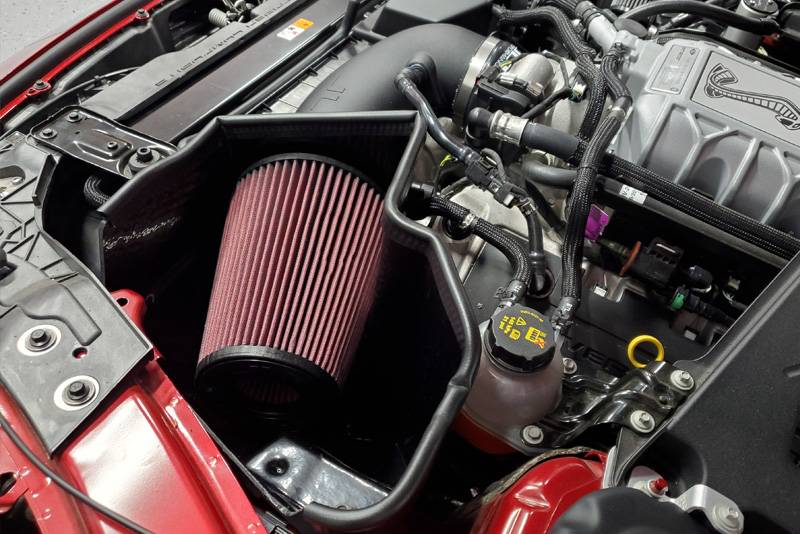

AIR FILTER
We use only the best air filters made by S&B to our specifications. We love S&B's tapered flange design and Powerstack filtered ends. With a huge 6” opening on the tube we needed a huge filter. The result is a monster 6x9” filter.

OIL OR DRY
We use only the best air filters made by S&B to our specifications.
For years we only used oiled filters, but dry filter technology has been proven and is now a popular option.

Should I choose a Dry Disposable or Cotton Oiled Filter?
Since you are not sacrificing performance with either choice, the decision comes down to would you rather throw away the filter or clean it.

Dry: Comparable airflow to oiled cotton filters with the same great protection.
Last for up to 30,000 miles of highway driving. Extend the life of the filter using compressed air.

Oil: Oiled filters can last forever as long as you properly clean and re-oil it.
See picture of filters below. Oil filters are available in red or blue and Dry filters are white.

*This product is NOT CARB (California Air Resource Board) Exempt. It is not for legal sale or use in the state of CA or any other states adopting CA emission standards and require a CA Executive Order (EO) number. Any orders placed for this item with a CA ship to address will be cancelled.

Video


Details

Shipping Information

  • Item Requires Shipping
  • 13.0 lbs.
  • W16.0000” x H16.0000” x L20.0000”
  • FREE SHIPPING on orders *$199 or more
  • This item ships in its own box.
