64-70 Mustang TCP Mini Tub Leaf Spring Rear Suspension with Panhard Bar

TCP-5868-M10-PB

Mini Tub Leaf Spring Kit with Panhard Bar Package, Fits 64-70 Mustangs and Provide an additional 2.75 Inches of Rear Tire Clearances

The mini-tub leaf-spring suspension from TCP will fit the classic 64-70 Mustang. This leaf spring rear suspension allows substantially greater clearance for extremely large tire and wheel combinations. Relocated shocks and springs combined with the additional mini-tub clearance allow 2-3/4” more tire clearance on each side of the vehicle. Systems include all mounts, offset frame rail inserts, leaf springs, spring plates, shock absorbers and adjustable Panhard bar Kit!

INSTALLATION NOTE: The ‘65-66 GT rear valance is not compatible with this suspension. This kit INCLUDES the Panhard bar Package with the suspension for sharper and more predictable handling.

Sold as KIT

Shipping: Ships via Truck Freight. Best to ship to a Commercial Business Address if Possible.
Pricing: $3,427.00

Customize Your Item

- Mini Tub and Frame Offset Option -
 * required
- Housing Leaf Spring Perches -
 * required
- Optional Anti-Roll Bar -
 * required
- Axle Housing U-Bolts -
 * required
- Choose Leaf Spring Design -
 * required
- Shock Valving Options -
 * required
Qty:

Special Notes

Mini-Tub Leaf-Spring Rear Suspension

This mini-tub leaf-spring suspension offered by Stang-Aholics and manufactured by Total Control Products (TCP) allows substantially greater clearance for extremely large tire and wheel combinations. Relocated shocks and springs combined with the additional mini-tub clearance allow 2-3/4 inches of ADDITIONAL rear tire clearance on each side of your Classic 64-70 Mustang. This system includes all mounts, offset frame rail inserts, leaf springs, spring plates and shock absorbers. This Kit INCLUDES the adjustable panhard bar package for sharper and more predictable handling.
Fits all styles of 1964-70 Mustangs However, Convertibles may require extra fabrication work to the convertible top structure/components.
Made with high quality components and manufactured with Pride in the USA!!
NOTE: ‘65-66 GT rear valance is not compatible with suspension.

**See "DOCUMENTS TAB" above for More Detailed Product Information and additional Option Information.



Mini-Tub Leaf-Spring Suspension with Panhard Bar Includes:
Mini wheel tub set (weld-in)
Offset frame rail inserts (weld-in)
Panhard Bar Mount, Mount Brace, Spring Plate, Aluminum Bar Assembly and Hardware
Front spring mounts with gusset (weld-in)
Rear spring mounts and crossmember (weld-in)
Leaf-spring plates with lower shock clevis Upper shock mounts (weld-in)
Poly spring bushings and shackle set
Note * - Mini tubs and frame rail inserts may be omitted for vehicles with tubs already installed.

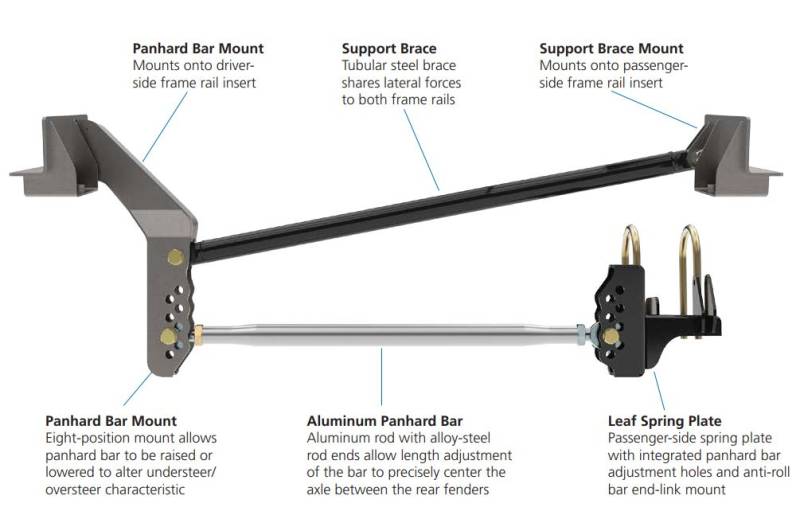

FEATURES OF INCLUDED PANHARD BAR KIT:

• Controls side-to-side axle movement
• Improves cornering stability
• Predictable handling characteristics
• Adjustable roll center geometry
• Integrated anti-roll bar mounts,
  shock mounts, and tie-down loops



OPTIONS For Mini-Tub Leaf-Spring Suspension:

Anti-Roll Bar Anti-roll bar (5868-M10-ARB)
Springs Mid-eye (1” lower) or reverse-eye (1-1/2” lower) 4- (street), 4-1/2- (performance), 5- (race) leaf springs Shocks Billet-aluminum VariShock Bolt-Ins - factory-valved, single-adjustable, double-adjustable
Hardware U-bolts 3”-ID x 6-1/2”
Spring Perches 2-5/8”, 2-3/4”, 3” axle tube diameter

Details

Shipping Information

  • Item Requires Shipping
  • 125.0 lbs.
  • W30.0000” x H30.0000” x L65.0000”
  • $175.00
  • This item ships in its own box.
  • Ships via Truck Freight. Best to ship to a Commercial Business Address if Possible.
