Coyote Swap Power Steering Pump Kits: How to Add Hydraulic Power Steering to a 5.0 Coyote Engine in a Classic Mustang

Swapping a modern Ford 5.0 Coyote engine into a 1965–1973 classic Mustang is one of the most popular performance upgrades in the restomod world. The Coyote delivers modern reliability, EFI drivability, and impressive horsepower. However, one major challenge appears during the swap: power steering integration.

Unlike earlier Mustangs, the factory Coyote engines (2011+) were designed for electric power steering systems, meaning they do not include provisions for a hydraulic power steering pump. When installing a Coyote into a classic Mustang that uses a hydraulic steering rack, steering box, or hydroboost brake system, a conversion kit is required to mount a hydraulic pump to the front of the engine.

In this guide, we’ll walk through the technical challenges of Coyote swap steering systems and how three proven solutions from Stang-Aholics allow builders to add hydraulic power steering to their swap.

Why Coyote Engine Swaps Need a Hydraulic Power Steering Pump

The modern 5.0 Coyote engine platform was engineered to work with electric power steering racks, eliminating the need for a belt-driven pump.

Classic Mustangs, however, commonly use:

  • Hydraulic steering boxes (factory)

  • Borgeson steering conversions

  • Rack and pinion steering systems

  • Hydroboost brake assist systems

All of these systems require pressurized hydraulic fluid from a pump.

Because the Coyote engine lacks a pump mounting provision, builders must install a front accessory drive system (FEAD) designed specifically for engine swaps. These kits mount a belt-driven hydraulic power steering pump to the front of the engine while maintaining proper accessory alignment.

Key Challenges When Adding Power Steering to a Coyote Swap

Before choosing a kit, it’s important to understand the main engineering constraints:

1. Engine Bay Clearance

Classic Mustangs have limited space between:

  • Shock towers

  • Frame rails

  • Radiator

  • Steering components

Accessory drive kits must tuck the pump close to the engine block to prevent interference.

2. Belt Alignment

The pump must align perfectly with the:

  • Crank pulley

  • Alternator

  • Water pump

  • A/C compressor

Improper belt alignment can cause:

  • Belt failure

  • Bearing wear

  • Power steering cavitation

3. Hydraulic Compatibility

Classic steering systems require specific fittings and pressure ranges.

Many Coyote swap kits use AN hydraulic fittings for reliability and adaptability.

4. Cooling and Fluid Aeration

High RPM engines like the Coyote can cause fluid cavitation if the pump and reservoir are poorly designed.

High-quality kits address this using:

  • High-flow pumps

  • Baffled reservoirs

  • Precision pulleys

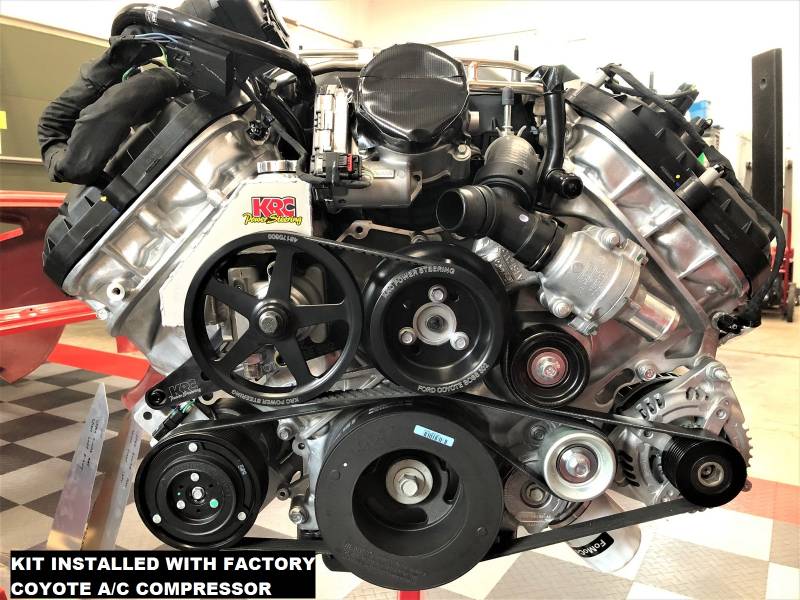

Kit #1: Coyote Swap Power Steering Pump with Pulleys

Mustang Coyote 5.0 Engine Swap Power Steering Pump with Pulleys

This kit is one of the most straightforward ways to add hydraulic steering to a Coyote-powered Mustang.

Overview

The kit allows builders to install a hydraulic power steering pump while retaining the factory Coyote alternator and air conditioning compressor.

That means:

  • OEM accessory alignment

  • Clean installation

  • Reduced parts cost

Key Technical Features

  • Hydraulic power steering pump with pulley

  • Billet water pump pulley

  • Mounting bracket

  • Dedicated drive belt

  • Complete installation hardware

The pump itself is a lightweight aluminum unit with Viton seals and SKF bearings, ensuring durability and leak resistance even in high-performance applications.

Installation Advantages

This kit mounts the pump tightly against the engine block to maximize space in the engine bay and maintain an OEM-style appearance.

It also supports:

  • Gen 1 Coyote

  • Gen 2 Coyote

  • Gen 3 Coyote engines

Builders should note the pump uses -6AN pressure and return fittings, meaning custom hydraulic lines must be fabricated to connect to the steering rack or box.

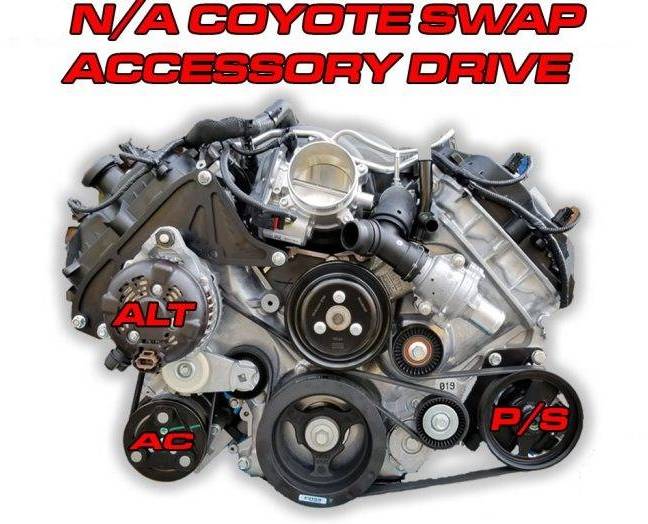

Kit #2: Coyote Swap Accessory Bracket Kit

1965‑1970 Mustang 5.0L Coyote Swap Accessory Bracket Kit

While the previous kit provides the pump itself, this solution focuses on front accessory drive mounting.

Purpose of the Kit

This bracket system allows builders to mount:

  • Power steering pump

  • A/C compressor

  • Alternator

directly onto the Coyote engine in positions optimized for classic Mustang engine bays.

The brackets are machined from billet aluminum and manufactured in the USA, offering both strength and precision alignment.

Technical Highlights

  • Billet aluminum accessory brackets

  • Belt tensioner

  • Serpentine belt system

  • Hardware for full installation

  • Designed for 1965-1970 Mustangs and 1996-2010 Mustangs

Compatibility

This system works with:

  • 2011+ Mustang Coyote alternators

  • 1996-2010 Mustang GT power steering pumps

  • 1996-2010 Mustang GT A/C compressors

By relocating accessories tight to the block, the kit improves:

  • Radiator clearance

  • Electric fan clearance

  • Frame rail clearance

This makes it an excellent choice for shock-tower Mustangs where space is limited.

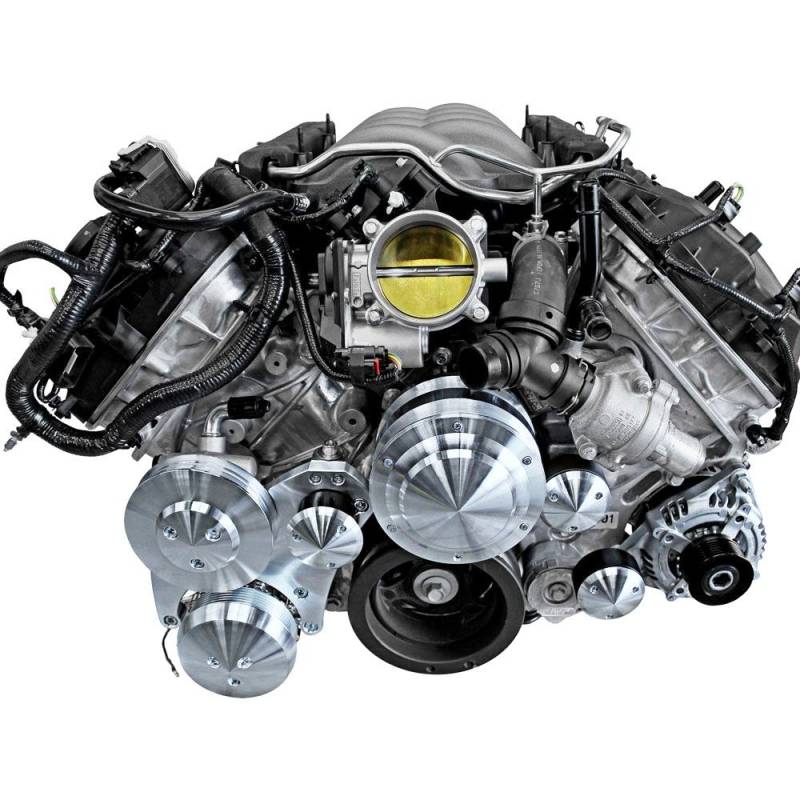

Kit #3: March Front Drive Kit with Power Steering and A/C

5.0 Coyote Engine Swap March Front Drive Kit with Power Steering and A/C Compressor

For builders seeking the most complete and polished front accessory drive system, the March Performance kit provides a full solution.

What Makes This Kit Different

Instead of adding a pump separately, this system replaces the entire accessory drive with a high-end serpentine front drive system.

This type of kit is popular for:

  • High-end restomods

  • Show-quality builds

  • Pro Touring Mustangs

System Components

Typical components include:

  • Billet accessory brackets

  • Serpentine pulley system

  • Power steering pump

  • A/C compressor

  • Belt tensioners

  • All mounting hardware

These kits are designed for optimal accessory alignment and high RPM reliability.

A properly engineered front accessory drive ensures the pump can keep up with the Coyote engine’s high RPM capability without cavitation, a common problem with poorly matched pumps.

Choosing the Right Coyote Swap Power Steering Pump Kit

Each of these kits serves a different type of build.

Best Budget-Friendly Solution

Coyote Power Steering Pump Kit

Best for builders who want to:

  • Retain factory accessories

  • Keep the swap simple

  • Add hydraulic steering quickly

Best Modular Setup

Coyote Accessory Bracket Kit

Ideal when:

  • Using 96-10 Mustang accessories

  • Building a custom FEAD setup

  • Tight engine bay clearance is a concern

Best Premium Setup

March Front Drive Kit

Perfect for:

  • High-end builds

  • Engine bay show quality

  • Full accessory drive replacement

Hydraulic Line Considerations

Once the pump is installed, builders must connect it to the steering system.

Typical plumbing includes:

Pressure Line
Pump → Steering Rack or Box

Return Line
Steering Rack → Reservoir

Many swap builders use AN hydraulic fittings because they:

  • Handle high pressure

  • Resist leaks

  • Simplify custom routing

Reservoir placement should also be carefully considered to avoid fluid aeration.

Steering Systems Commonly Used in Coyote Swap Mustangs

Popular steering options include:

  • Borgeson steering box conversions

  • Rack and pinion systems

  • Mustang II front suspension systems

  • Hydroboost brake assist setups

All of these require a reliable hydraulic pump when paired with a Coyote engine.

Final Thoughts

A Coyote engine swap transforms a classic Mustang into a modern performance machine, but solving the power steering challenge is a critical step in the build.

Because the Coyote platform was designed for electric steering, adding hydraulic power steering requires a purpose-built pump mounting system and accessory drive solution.

Fortunately, several proven kits make the process straightforward:

  • Coyote Power Steering Pump Kit

  • Coyote Swap Accessory Bracket Kit

  • March Coyote Front Drive System

With the right setup, your Coyote-swapped Mustang can maintain modern performance while retaining smooth, reliable hydraulic steering.

✔ Reliable steering feel
✔ Clean engine bay installation
✔ Compatibility with classic steering systems

Explore Coyote Swap Power Steering Pump Kits:



Additonal Recommended Parts for Your Coyote Swap

When installing a hydraulic power steering pump on a Coyote engine, most builders also upgrade several related components to ensure proper fitment and performance.

Popular upgrades include:

  • Coyote swap power steering pump kits

  • Coyote accessory bracket systems

  • Mustang Coyote transmission crossmembers

  • Coyote swap headers and exhaust systems

  • Cooling upgrades for high-horsepower Coyote builds

Explore the full lineup of Coyote engine swap components available at Stang-Aholics to complete your build.
