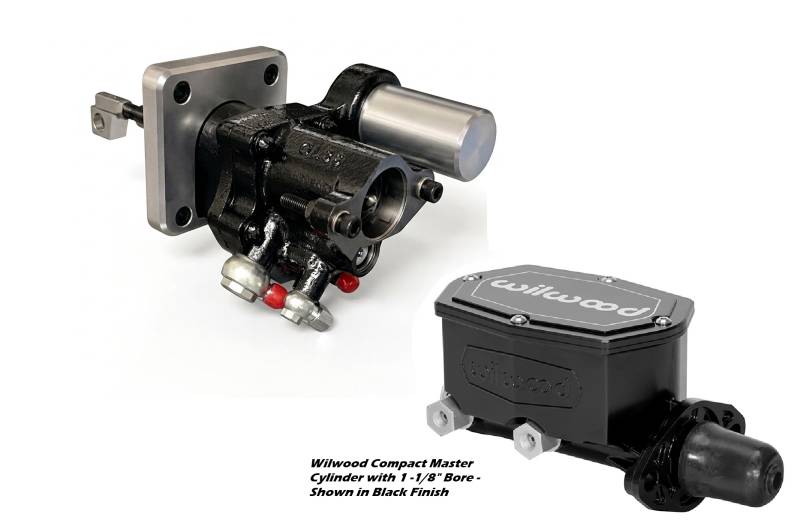

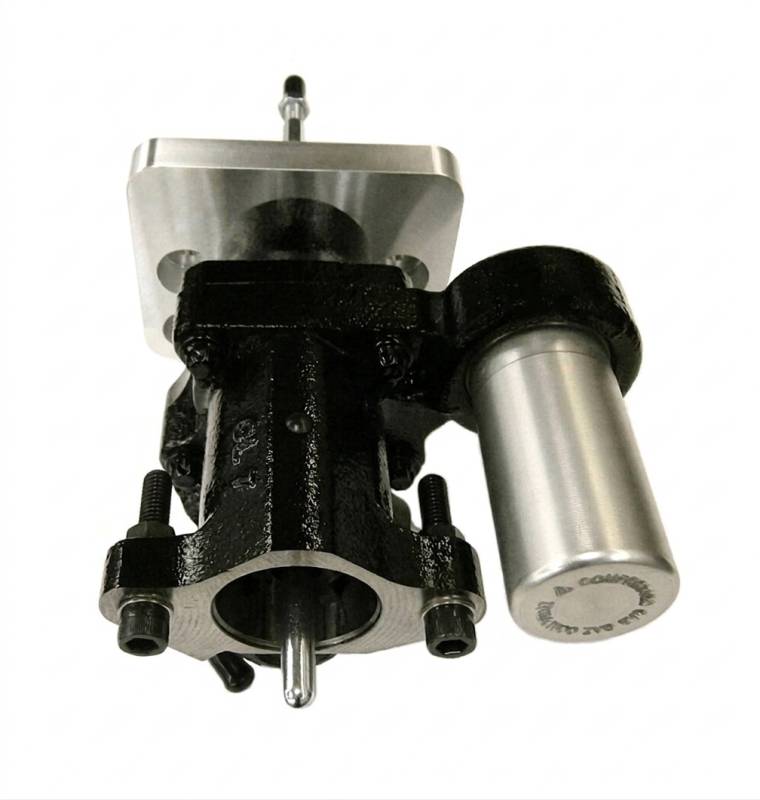

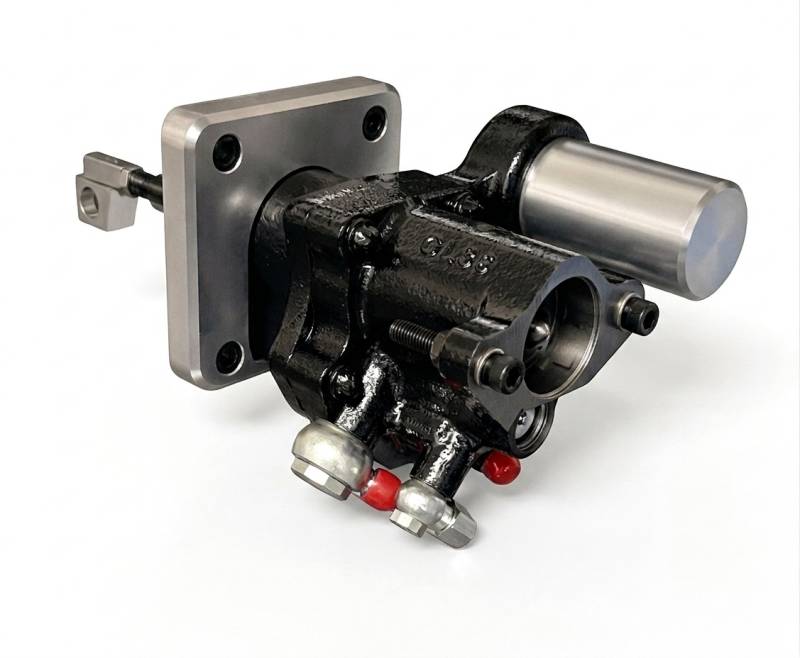

67-70 Mustang Hydroboost Hydraulic Power Brake Boost Assembly
Designed for Push Rod Engines - Will Not Clear with Coyote/Modular Engines
Hydro boost Power Brake Assist Assembly designed for 67-70 Mustangs with Push Rod Engines (Not Modular Engines)
Upgrade your Classic 67-70 Mustang's braking power with our high-performance Hydraulic Brake Assist System. This hydraulic brake assist system is designed to bolt up to your classic Mustang firewall and work in your engine compartment where a factory booster set-up creates clearance issues or where a high performance engine does not produce enough vacuum for a standard vacuum assist booster!
Every system is built entirely from brand-new parts—no remanufactured or refurbished components like some others found on the market. This Hydratech system uses only the latest production Bosch units—proven, reliable, and ready for high-performance applications. Each unit is thoroughly tested to ensure consistent and precise brake assist operation before it reaches you. No fabrication needed - Installs using common hand tools on your classic Mustang's stock firewall!
Sold as a Kit
Description
Key Hydro Boost Product Features:
- 100% all-new, high-end components – no remanufactured parts!
- CNC-machined T6061 billet aluminum mounting plates (Hydratech)
- Designed for direct bolt-on installation to Mustang firewall - just a few holes need to be drilled
- Genuine NEW (Not Rebuilt) Bosch factory production brake assist unit
- Industrial black powder-coated brake unit castings
- Factory dyno-tested for consistent and accurate operation
- True bolt-in design – installs easily with common hand tools
- AN-6 high-pressure adapters pre-installed in ports
- Low-profile 90° return line nipple for tight clearances
- Step-by-step installation instructions included
- Phone and email support from real tech experts
- 1-year limited warranty on materials and workmanship from the manufacturer
OPTIONAL ADDITIONAL ITEMS TO COMPLETE YOUR KIT
- Automotive Grade Black braided TFE hose set
- Reusable/rebuildable hose ends – not crimped

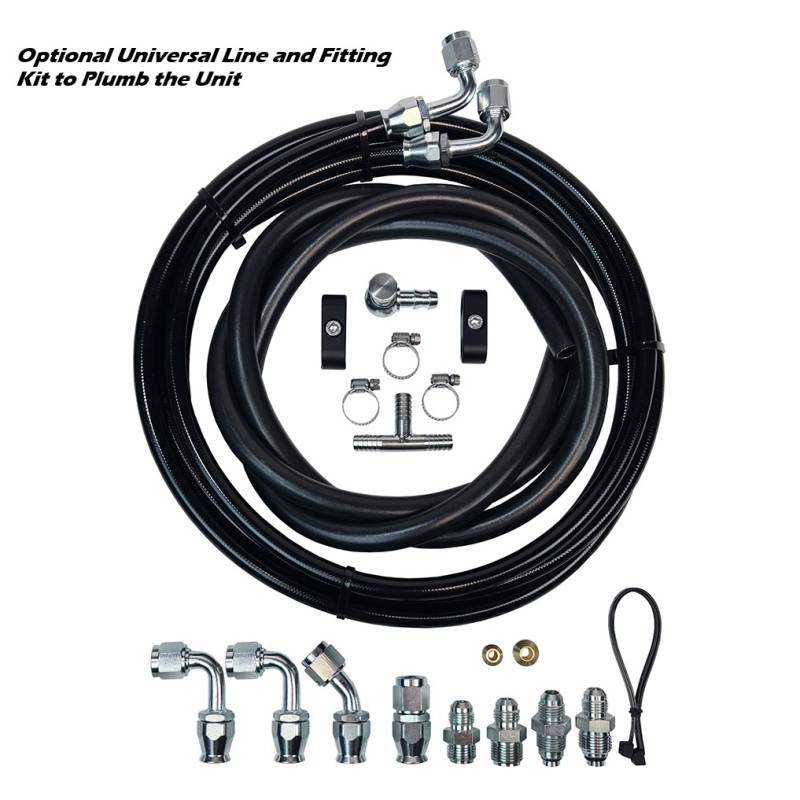

- Complete plumbing kit with all necessary fittings and small parts

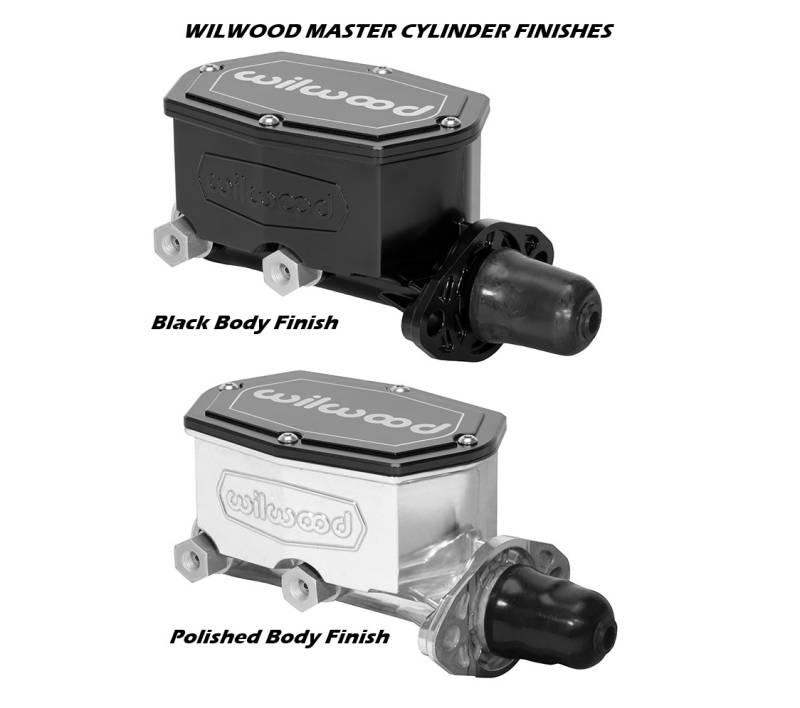

- Wilwood Master Cylinder with Choice of Body Finish

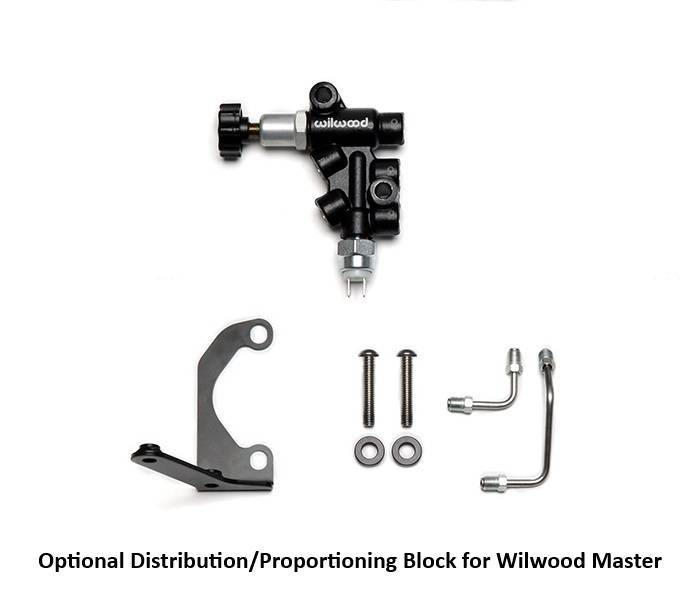

- All-in-One Distribution/Propotioning Block for Clean Plumbing and Easier Adjustment
**IMPORTANT INSTALLATION NOTES (PLEASE READ BEFORE PURCHASE):
- If using Stock Hood Hinges, you must remove the stock springs and use a Hood Prop Rod for Proper Clearance with the Assembly on the Driver's Side
- If wanting to run aftermarket Billet Hood Hinges instead, we recommend Eddie Motorsport Hinges as we know they clear this unit (See links below)
- Must use a Power Steering pump that can provide the proper pressure/flow for a Hydro boost System. If unsure, please contact us before making a purchase.
- We recommend the Wilwood master cylinder with a 1-1/8 Inch bore we offer on this product page. If you already have a master cylinder, or are planning to use something else, please contact us before purchase to make sure it is compatible.
Special Notes
Key Hydro Boost Product Features:
- 100% all-new, high-end components – no remanufactured parts!
- CNC-machined T6061 billet aluminum mounting plates (Hydratech)
- Designed for direct bolt-on installation to Mustang firewall - just a few holes need to be drilled
- Genuine NEW (Not Rebuilt) Bosch factory production brake assist unit
- Industrial black powder-coated brake unit castings
- Factory dyno-tested for consistent and accurate operation
- True bolt-in design – installs easily with common hand tools
- AN-6 high-pressure adapters pre-installed in ports
- Low-profile 90° return line nipple for tight clearances
- Step-by-step installation instructions included
- Phone and email support from real tech experts
- 1-year limited warranty on materials and workmanship from the manufacturer
OPTIONAL ADDITIONAL ITEMS TO COMPLETE YOUR KIT
- Automotive Grade Black braided TFE hose set
- Reusable/rebuildable hose ends – not crimped
- Complete plumbing kit with all necessary fittings and small parts
- Wilwood Master Cylinder with Choice of Body Finish
- All-in-One Distribution/Propotioning Block for Clean Plumbing and Easier Adjustment
**IMPORTANT INSTALLATION NOTES (PLEASE READ BEFORE PURCHASE):
- If using Stock Hood Hinges, you must remove the stock springs and use a Hood Prop Rod for Proper Clearance with the Assembly on the Driver's Side
- If wanting to run aftermarket Billet Hood Hinges instead, we recommend Eddie Motorsport Hinges as we know they clear this unit (See links below)
- Must use a Power Steering pump that can provide the proper pressure/flow for a Hydro boost System. If unsure, please contact us before making a purchase.
- We recommend the Wilwood master cylinder with a 1-1/8 Inch bore we offer on this product page. If you already have a master cylinder, or are planning to use something else, please contact us before purchase to make sure it is compatible.
Details
- HTB-3662L
- HTB-3662L
- Stang-Aholics
- This is a special-order item. The current estimated lead time to ship from the date of order is 1-2 weeks.
- New
Categories
- Brakes - Master Cylinders & Boosters - Booster & Master Kits
- Brakes - Master Cylinders & Boosters - Booster & Master Kits
- Brakes - Master Cylinders & Boosters - Power Brake Boosters
- Brakes - Master Cylinders & Boosters - Power Brake Boosters
- 1964-1973 Mustang Parts - 1964-1973 New Products
- Build Kits - 5.0 Coyote Engine Swap Parts
Shipping Information
- Item Requires Shipping
- 28.0 lbs.
- W14.0000” x H14.0000” x L14.0000”
- FREE SHIPPING on orders *$199 or more
