65 - 73 Mustang  Independent Rear Suspension
Click to Enlarge

Classic Mustang Independent Rear Suspension Kit, Universal

Now You Can Finish Your Mustang The Right Way With Heidt's New Superide Irs Kit. It Is The Best Riding And Handling IRS And Will Make Your Mustang A First Class Ride. The Geometry Is Designed To Be Compatible With Most Independent Front Suspension Kits.

Part No: BR-101
List Price:  $8,075.00
Your Price:
$7,349.00
Quantity:
Special Notes

Heidts IRS Options

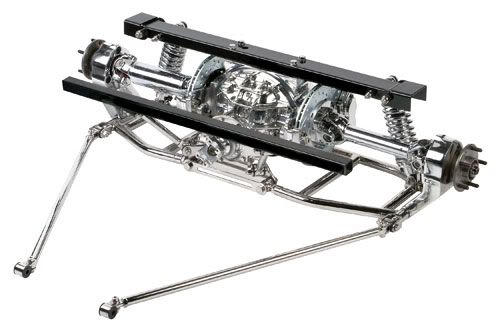

Note: Shown With Polished Options Above

Heidts IRS, Installed
Heidts IRS Installed in a 1968 Fastback Mustang

Now you can finish your Mustang the right way with Heidt's new SUPERIDE IRS kit. It is the best riding and handling IRS to combine with your Mustang II IFS and will make your Mustang a first class ride. The geometry is designed to be compatible with the SUPERIDE IFS, as well as most other independent front suspension kits. It is a complete kit, hub to hub, just like the SUPERIDE IFS. It begins with a cast aluminum alloy center housing, which is available fully polished. It includes a Ford 9" 3rd member, which is also available in fully polished aluminum. All popular gear ratios are standard. Tread widths for all the popular applications from 55" to 62" are standard, and custom widths can be ordered. Inboard disc brakes with polished Wilwood calipers are standard. Half shafts include heavy duty 1350 U-joints, and are available chrome plated. Lower control arms are available standard in plain steel, or can be upgraded to polished stainless steel, plain or polished billet aluminum. Aldan adjustable billet coil-overs are standard, also available polished. Chrome springs are standard. Dual coil-overs are also available for heavier applications. Outer uprights are heat treated aluminum alloy and use Corvette bearing assemblies. Front and rear tie bars, urethane brushed crossmember, pinion support with links and forward struts are included. Forward struts, pinion support links, tie bars and pinion plate are also available in polished stainless steel and plain or polished billet aluminum. Many other options are available for the best riding IRS around...SUPERIDE IRS.

UPS SHIPPING

Your SUPERIDE IRS is shipped to you complete, hub-to-hub, by UPS - with no other parts to buy.  This saves you expensive crating and truck freight charges, making it the best IRS value on the market.
**We offer half-price UPS Ground Shipping on all Heidts Superide IRS Packages!

HERE'S WHAT YOU GET IN THE HEIDT'S KIT FOR $5799:

Cast aluminum alloy center housing and outer uprights, 9" Posi Traction third member with your choice of gears, steel halfshafts assembled with inner flanges and outer yokes including 1350 heavy duty U-joints, new forged inner stub axles with bearings and seals, Vented Smooth Wilwood rotors and polished 4 Piston calipers.  Corvette outer bearing assemblies and flanges, tubular lower control arms with adjusters, Heidts billet coil-overs with chrome springs, urethane brushed upper crossmember with outer mounting brackets, pinion support crossmember with urethane bushed links. The Forward struts with urethane bushed ends are also included.

***MANY POLISHED OPTIONS ARE SHOWN IN PRODUCT PICTURE, WHICH CAN  BE PURCHASE FOR AN UPGRADED PRICE. PLEASE CALL!


HERE IS WHAT IS INCLUDED FREE IN THE HEIDT'S BASIC IRS UNIT:



Value

Chrome Springs $60
Billet Coil-overs $110
Performance Gears $260
Pinion Support (required) & Forward Struts $300
Polished Calipers $120
Value Received

Free $850

Applications
MakeModelEngine TypeLiterYearsFuelCIDFuel Delivery
FordMustangV80.01964 - 1973GAS0CARB
